Last Update: Dec 05, 2021 Updated info

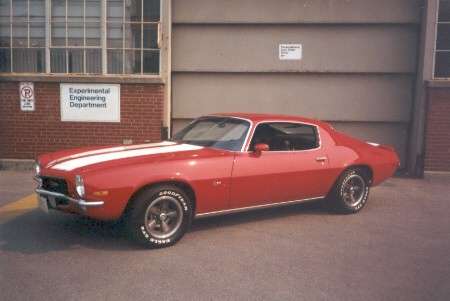

The pic below was taken in 1972 in Florida.

The '70 Camaro was the first of the 2nd Generation F body.

It was the first year Camaro:



bullet

 To have an in-glass windshield antenna

bullet

 Auto transmission

bullet

Optional 3 piece spoiler was available (COPO 9796)



My Z28 was ordered by GM Experimental in Oshawa Ontario Canada. The car was not to be sold to

the public but when a GM Executive saw the car, he wanted it, and the car went through the proper channels

and was sold through a Dealership. I purchased the car on 1981 from the original owners brother.



My setup today



bullet

Currently has a 1970 GM 350 Z28 LT1 bored 40 over (356ci)

bullet

Lunati 20120121 Retro Roller Cam, 10.2:1cr

bullet

Comp 1.52 Magnum Roller Tip Rockers part # 1412-16

bullet

Ignition timing - 14 degrees initial / 38 degrees total

bullet

Engine/body and paint redone in 1985

bullet

Paint code 75 cranberry red

bullet

3.73 posi rear

bullet

Muncie M22 Rock Crusher HD 4-spd transmission (orig guts were M20).

bullet

Custom cloth interior Z87

bullet

Tinted windows

bullet

Dual mirrors

bullet

Console

bullet

Distributor is stock with points

bullet

MSD blaster 2 coil

bullet

MSD 6AL 6420 ignition box

bullet

AC Delco R43 plugs gapped at .040

bullet

Taylor 8.2 mm ignition wires part # 84001 (40 ohms per foot resistance).

bullet

BFG P235-60-15 radials

bullet

Walker stock exhaust single cross-flow muffler.





My 1970 Numbers for a 4-spd car



Holley - 780 cfm 3972121 List 4555 dated 032

Distributor - 1112019 dated 0C18

Block - 3970010

Heads - 3927186

Exhaust manifolds - 3942527/3946826

Intake - 3972110

Delcotron - 1100837

Bell Housing - 3899621
