Last Updated: Apr 28, 2018 added more valve cover pics

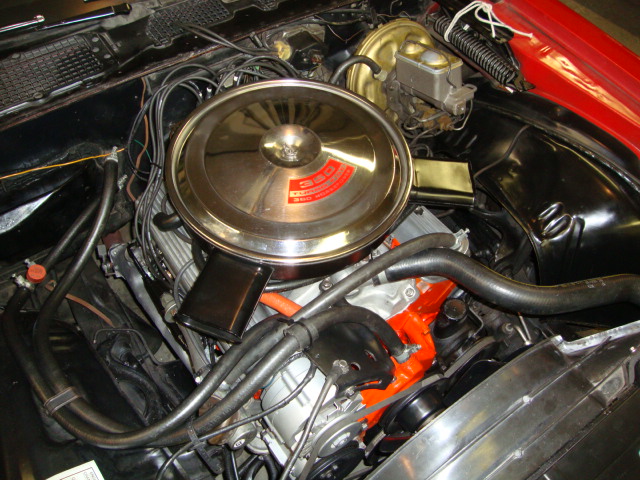

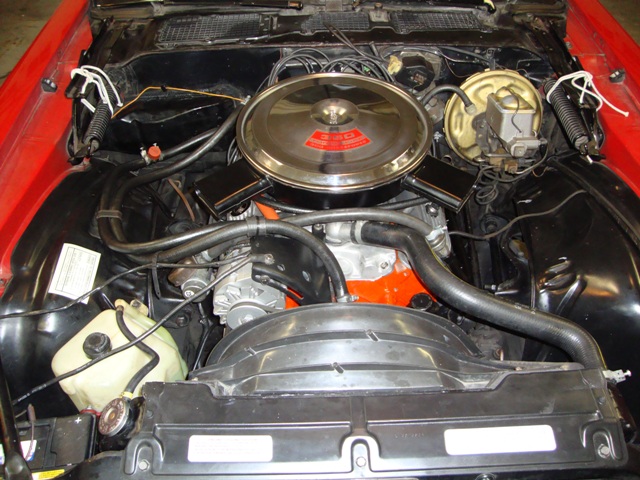

Click on thumbnail for larger photo below

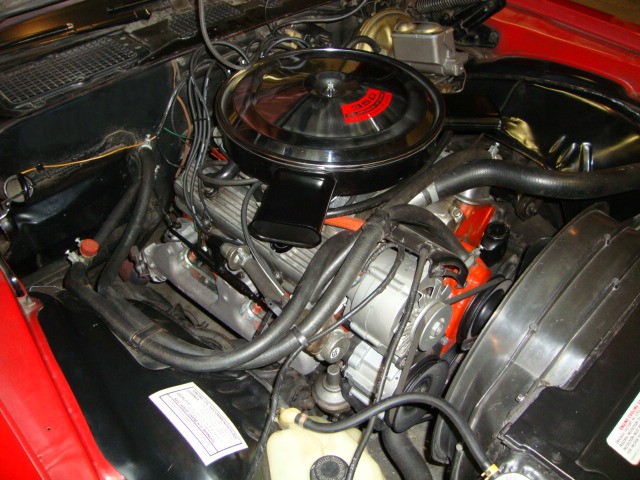

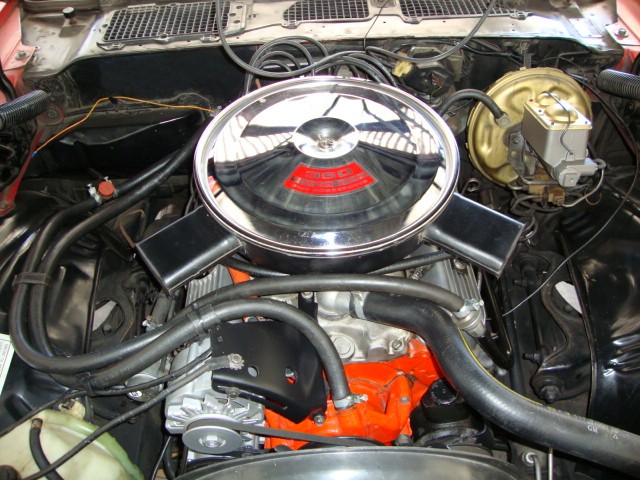

For 1970, a new forged-steel crankshaft was used with drop-forged steel connecting rods.

Forged-aluminum 11.0:1 pistons made by TRW. Fitted with a dual snorkle Smog cleaner.

My build date is 05E which decodes as May 5th week.

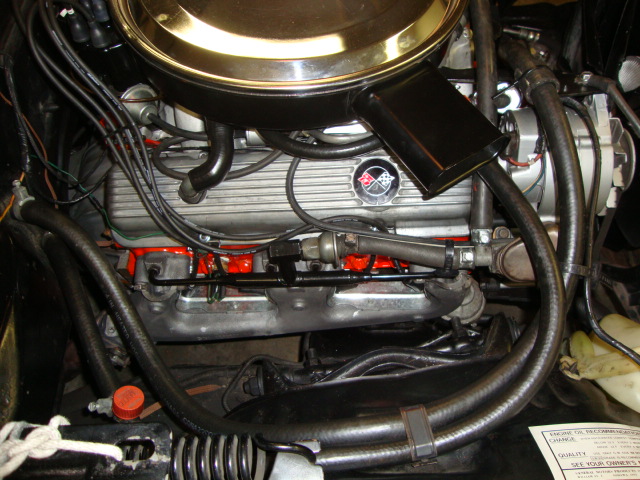

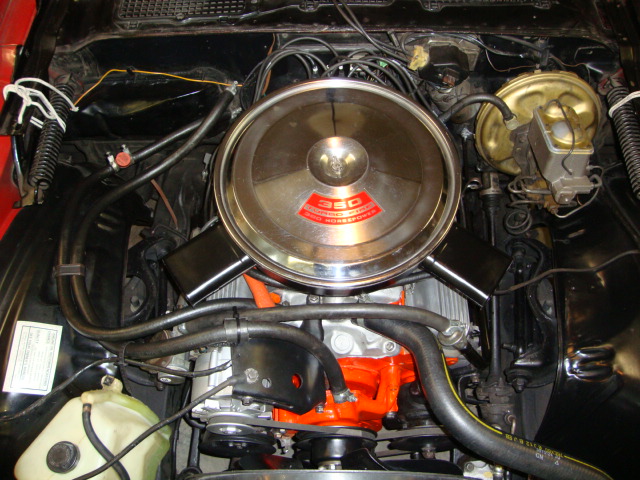

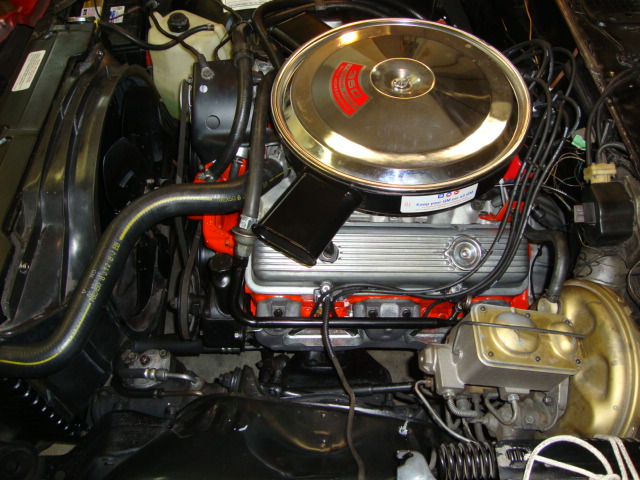

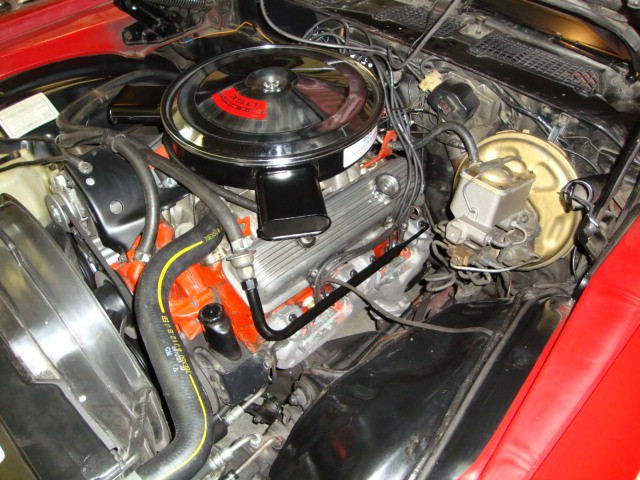

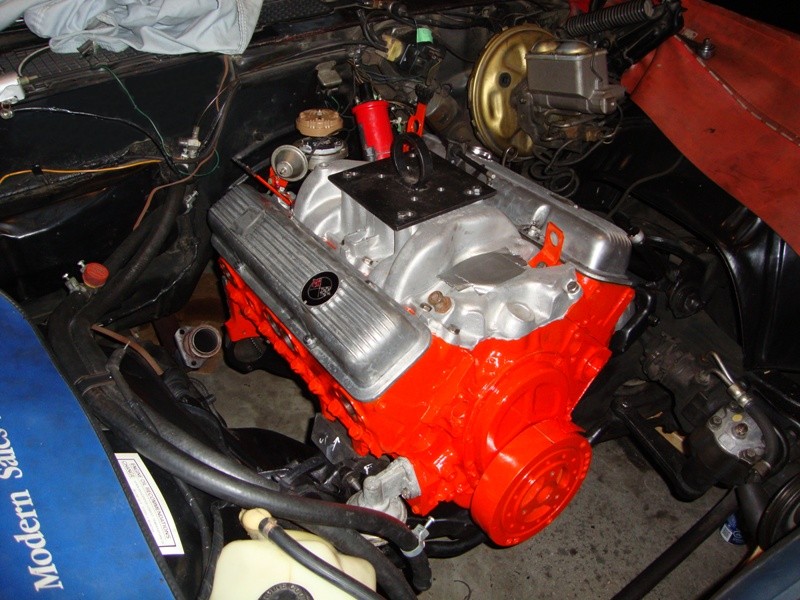

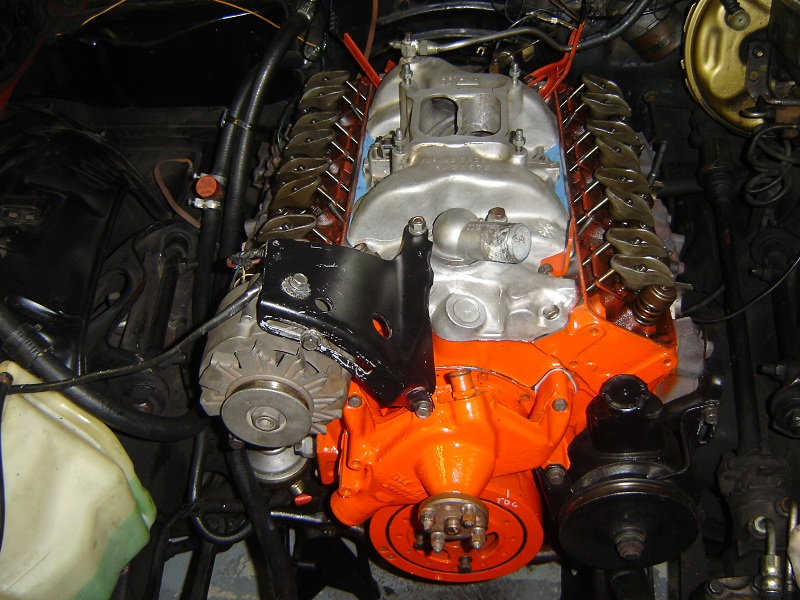

Engine Rebuilt pics below. In 2013 I had my engine rebuilt with a hyd roller cam.











HP-360 @ 6000 rpm and Torque 380 @ 4500 rpm

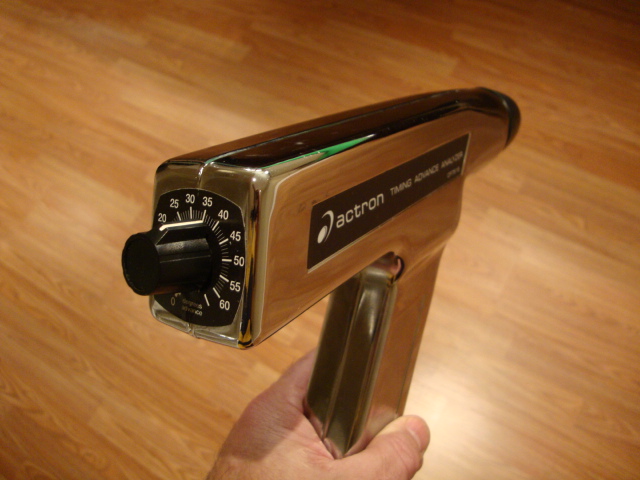

Total timing set @ 36*-38* @ 4000 rpm with vacuum disconnected.



Orig 1970 LT1 Cam is part no. 3972178



bullet

intake duration of 317 degrees

bullet

exhaust duration of 346 degrees

bullet

overlap of 96 degrees

bullet

Lift - Intake - .4586" (includes lash - .024")

bullet

Exhaust - .4850" (includes lash - .030")

bullet

rocker arm ratio of 1.5 to 1)





Heads - Casting 3972186 Part No 3987376



bullet

cast iron

bullet

2.02 inch diameter intake valves

bullet

1.60 inch diameter exhaust valves

bullet

64cc combustion chamber

bullet

screw-in rocker arm studs with hardened steel pushrod guide plates

bullet

intake valve 2.02 in.

bullet

exhaust valve 1.60 in.





Induction



bullet

cast-aluminum, high-rise, dual plane intake

bullet

780-cfm 4 barrel carb with1.686 inch diameter primary and secondary throttle bores

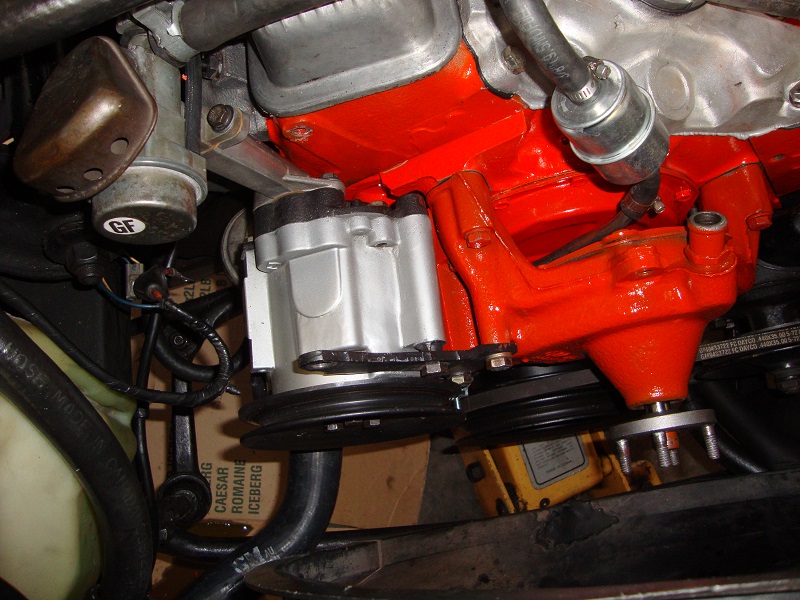

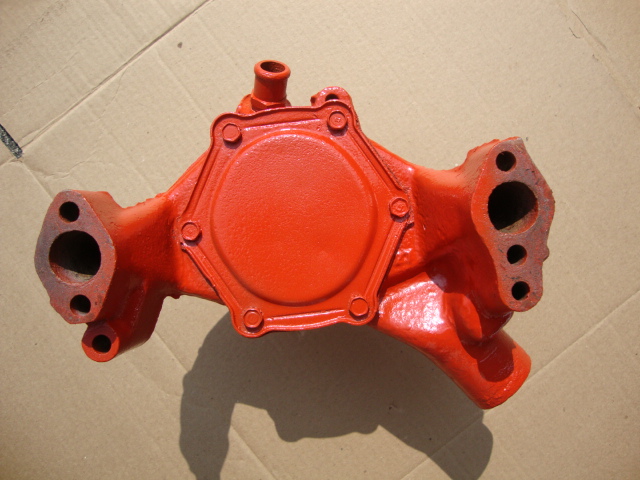

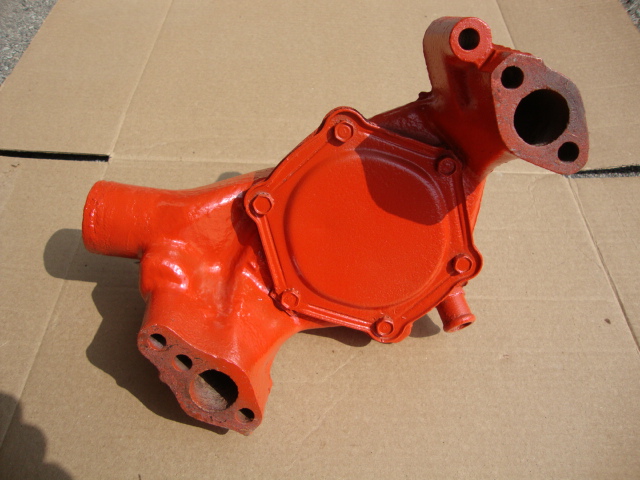

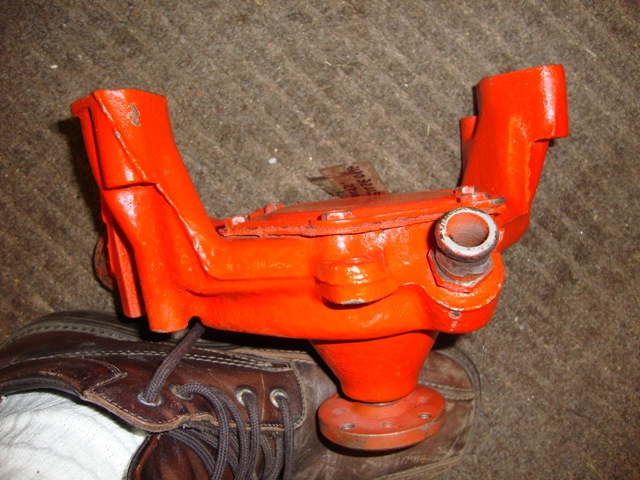

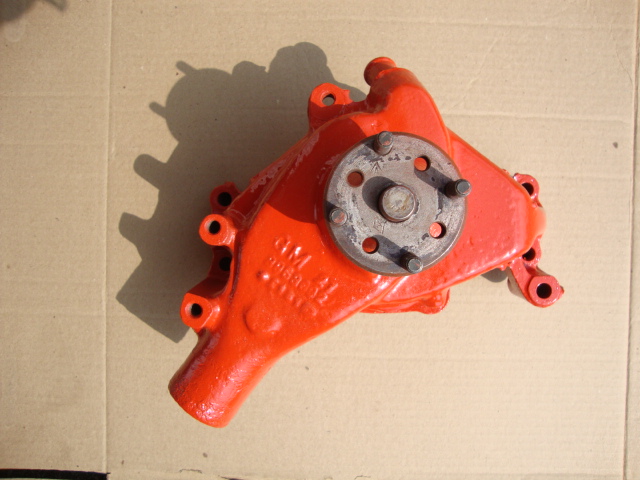

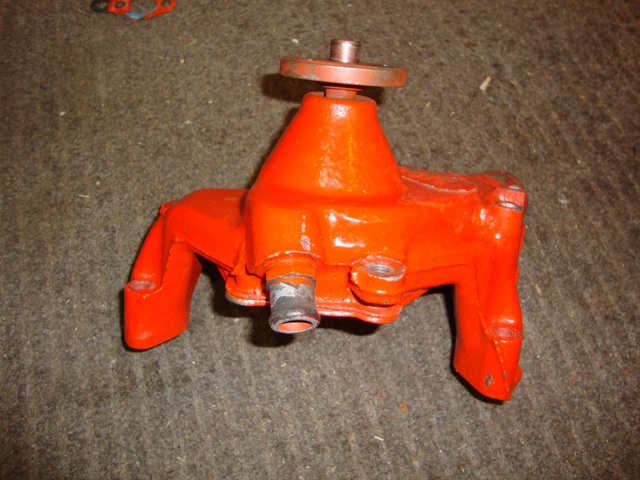

Water Pump 3953692

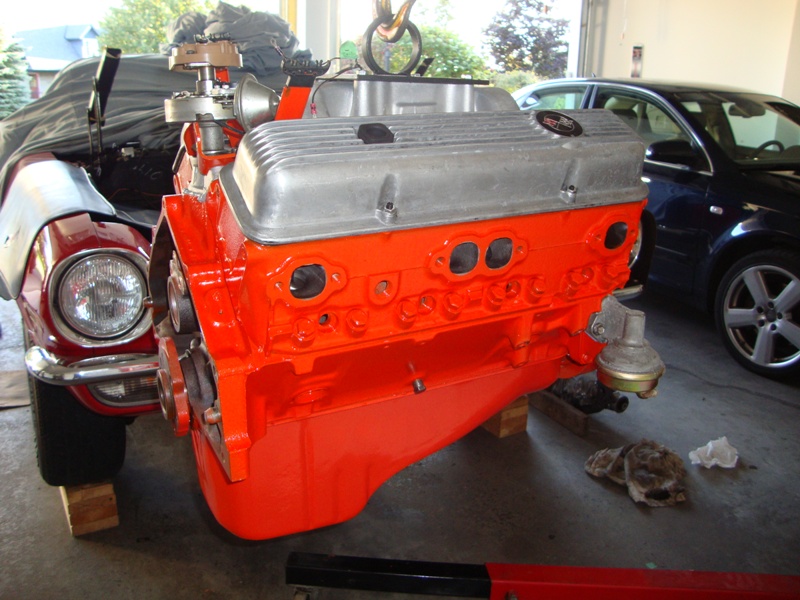

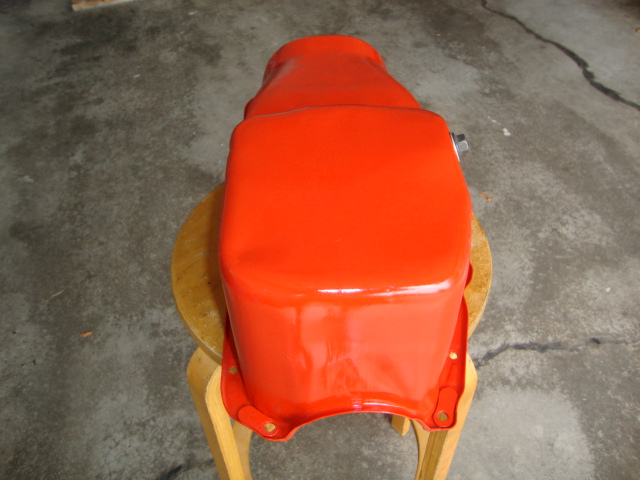

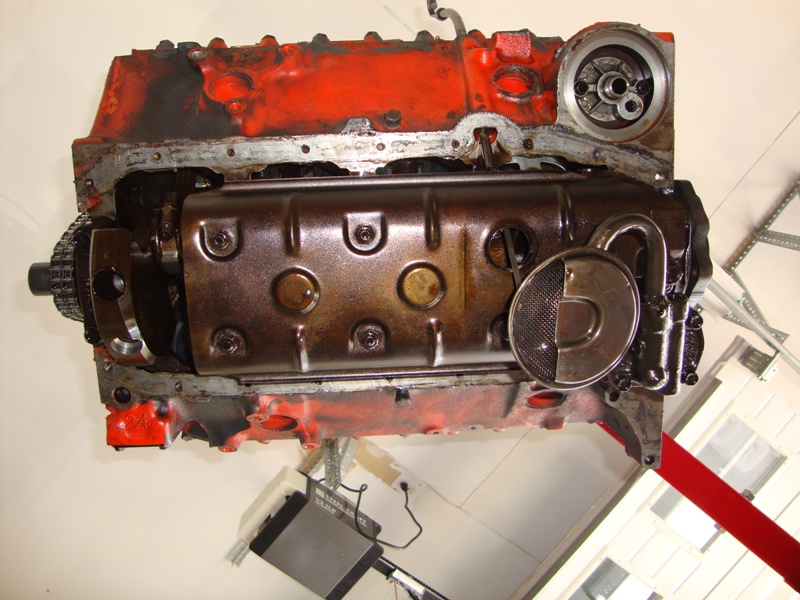

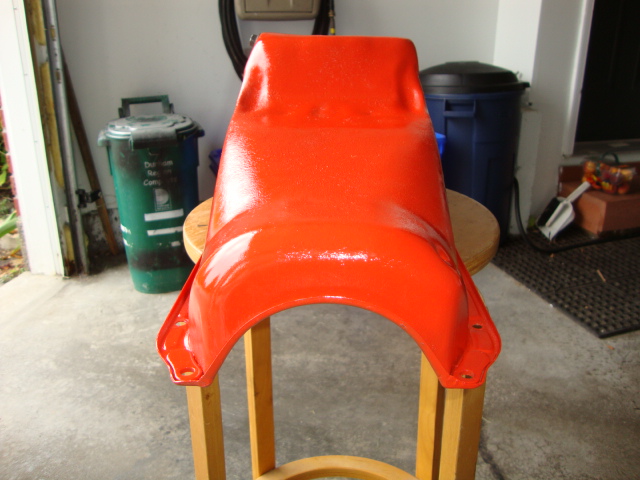

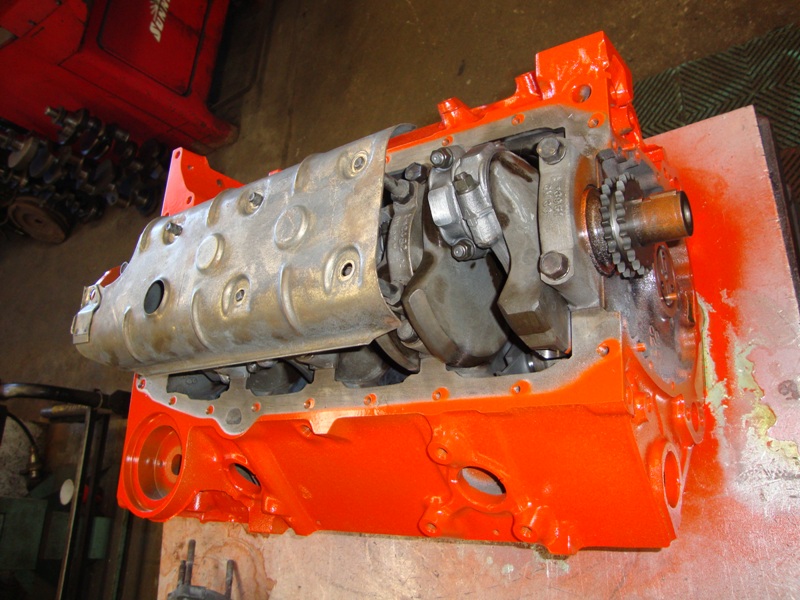

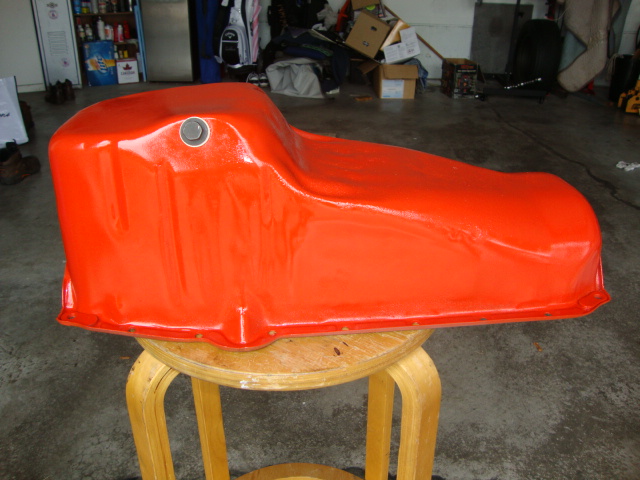

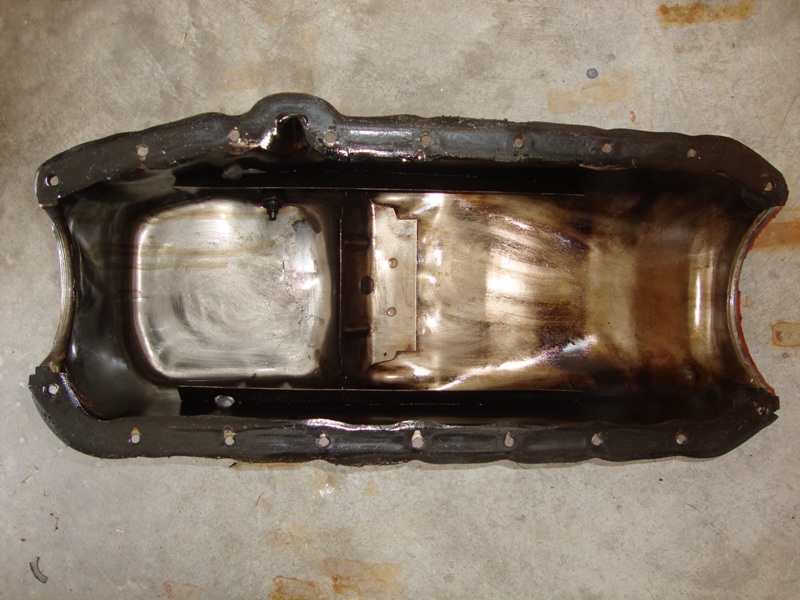

Oil Pan / Windage Tray

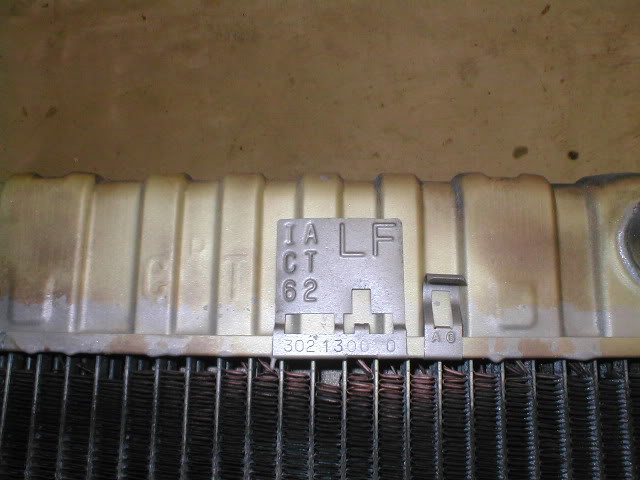

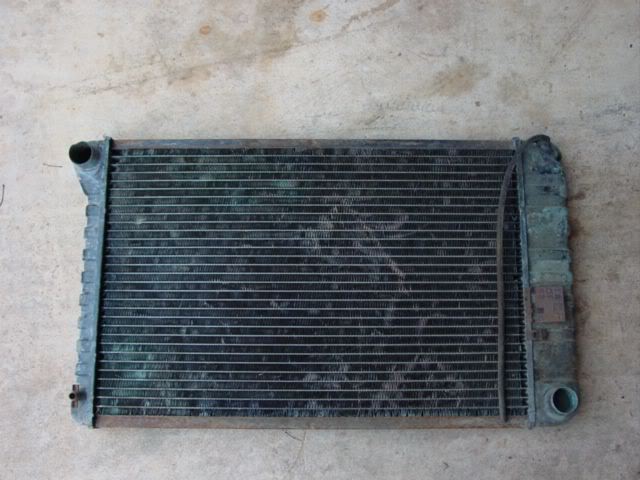

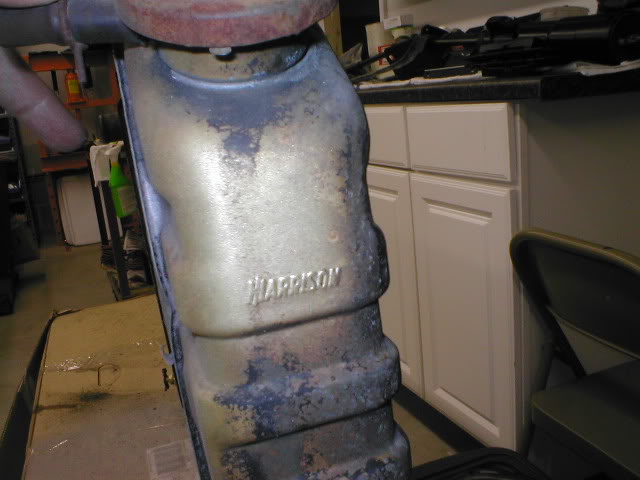

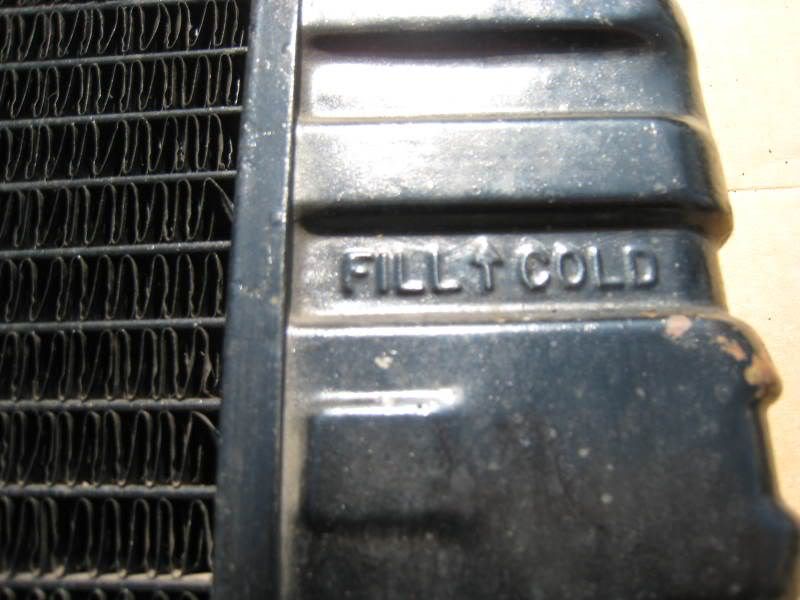

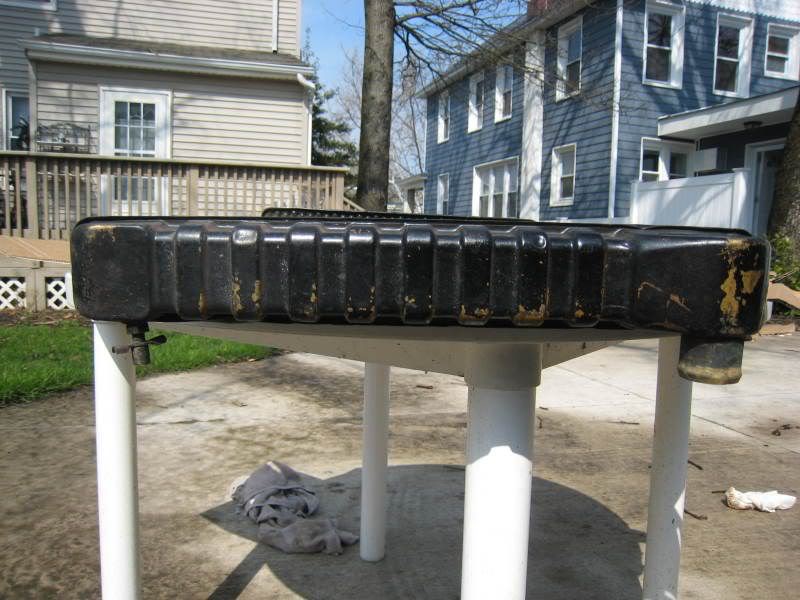

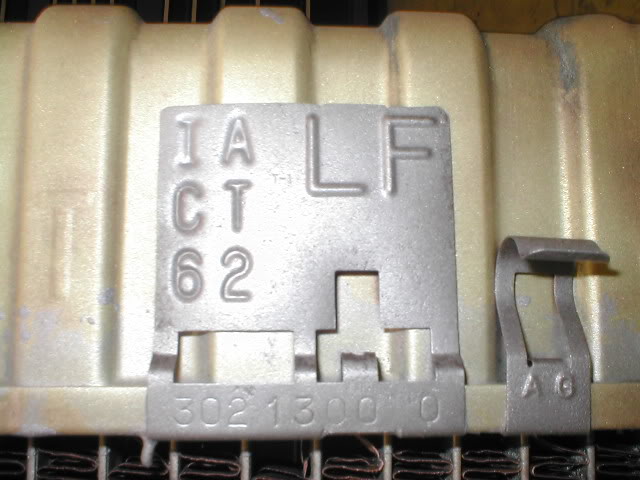

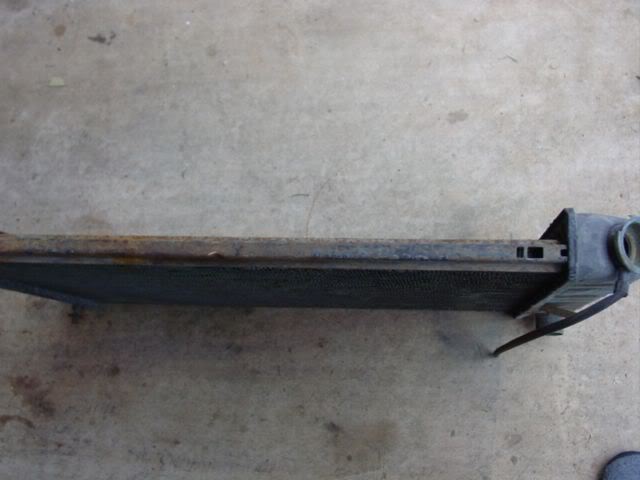

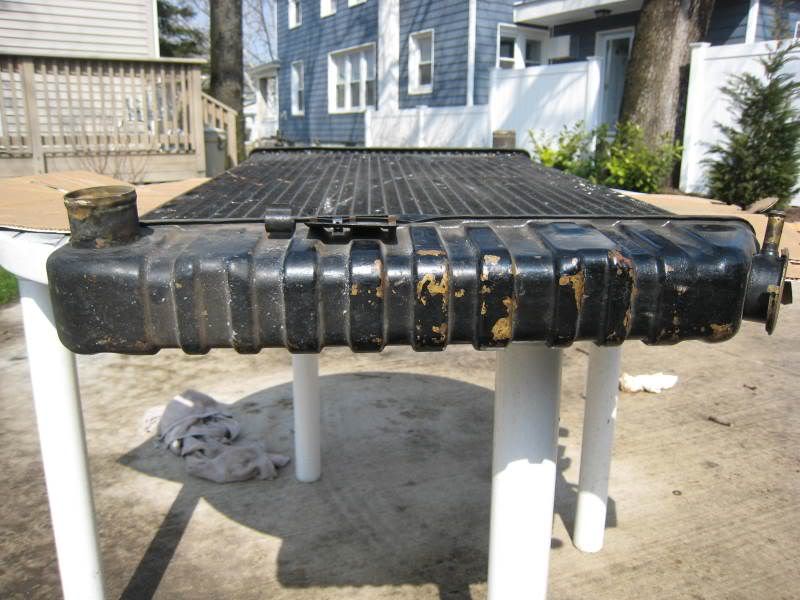

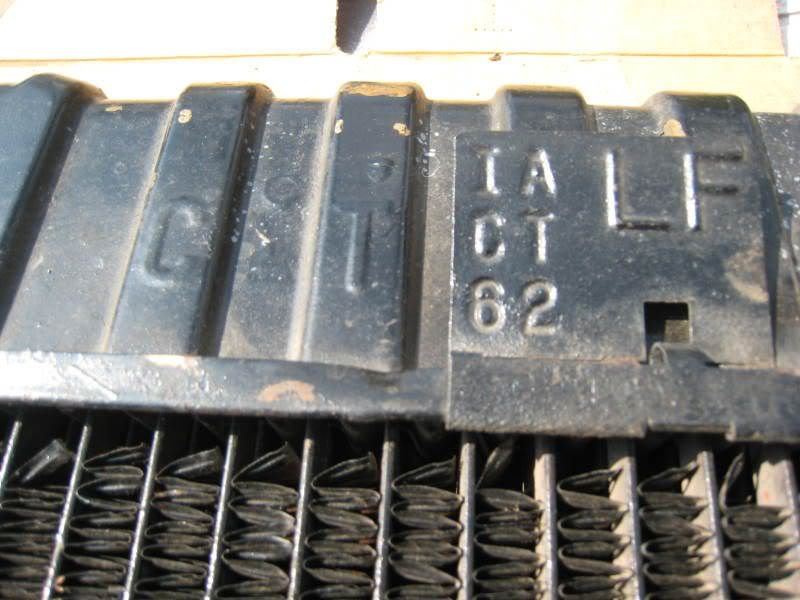

Radiator - 2 core




4-spd rad pics

They are not 1970 Z/28 specific so it might help those who are looking to look at other 1970 Camaro's besides a Z/28.

A 1970 307 cid-T350  Camaro used the same rad as a 1970 T400 Z28.

Look beyond the Z28 mentality and you might find what you are looking for at a good price.



.

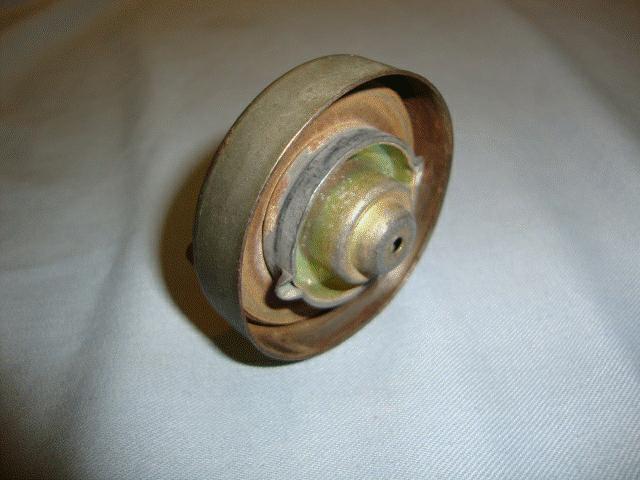

Rad Caps



Overflow jugs were not used in 1970, but you can add one.

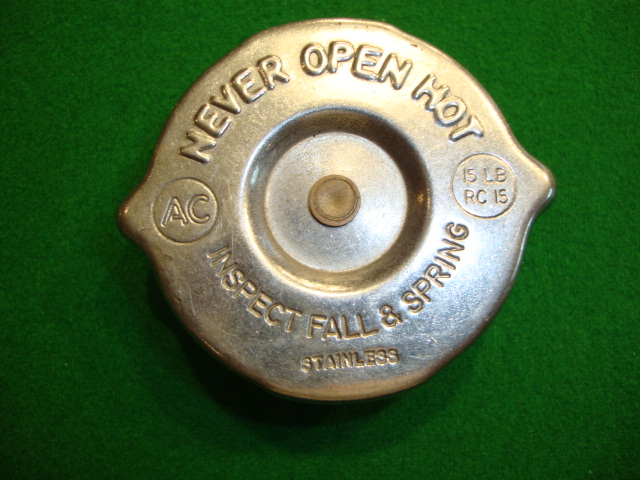

Without an overflow jug

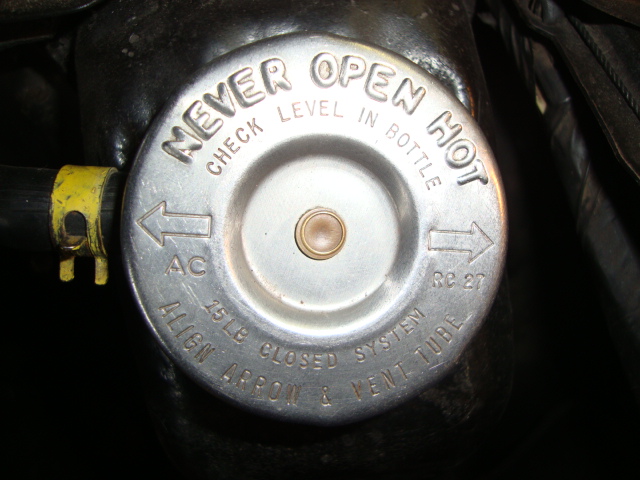

With an overflow jug. Make sure the arrow points to the tube or the water will not drain back into the rad.







Oil/Filter

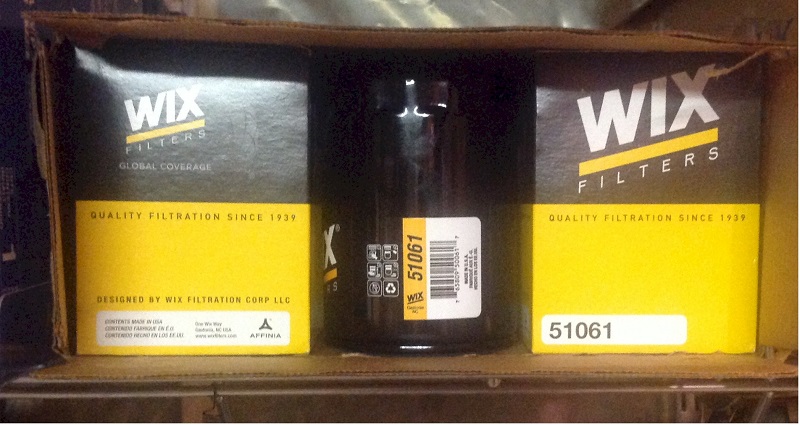

The NAPA gold 1061 filter is made by Wix. I bought a case of Wix 51061.

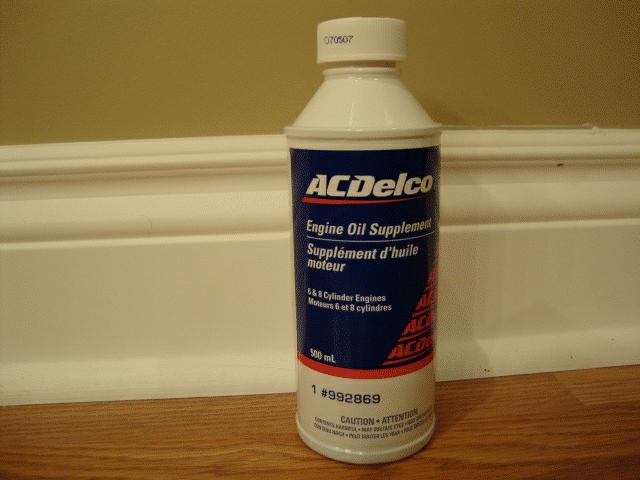

GM EOS 992869





AC Delco EOS 992869 contains 6221 ppm of ZDDT and 5762 ppm of Phosphorus.



ACDelco Engine Oil Supplement is a multi-purpose additive concentrate designed to help eliminate

lifter sticking, reduce valve train noise, reduce camshaft lobe scuffing, and reduce break-in wear.

The use will maintain the additive levels in oil to promote designed-in oil detergency, disperancy

and wear protection, especially under severe service conditions such as high load and high operating

temperatures. Not for diesel applications.





ZDDP

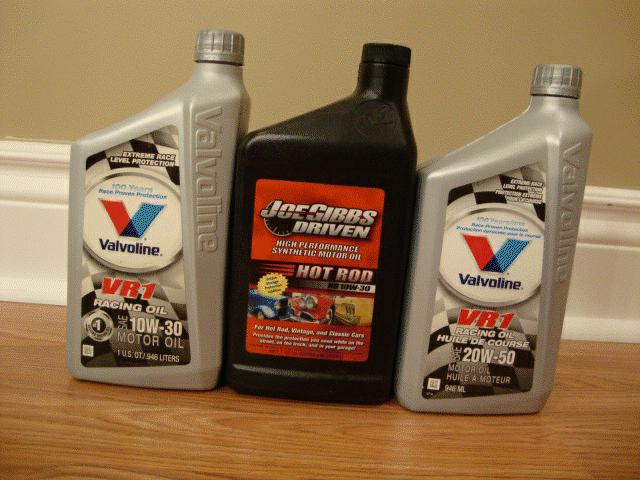

When I had a solid lifter cam I used it with enough ZDDP to protect the flat tappet engine. I do add 1 bottle of GM EOS with the Valvoline oil.

Joe Gibbs Hot Rod oil does not need EOS. If you add anything it will disturb the chemistry.

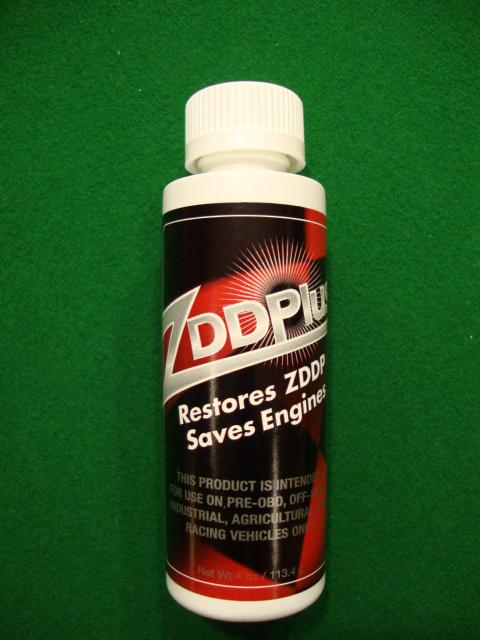

I started to use ZDDPlus to non synthetic oil to be better on the pocket book.

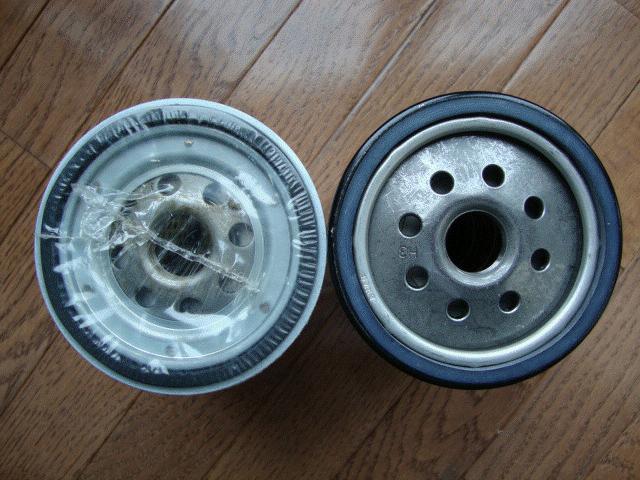

GM stopped selling AC PF25 and PF35 oil filters which did not have the anti drain back valve.

Napa Gold 1061and Wix 51061 is the replacement for the PF35 oil filter and it also does not have the anti drain back valve.

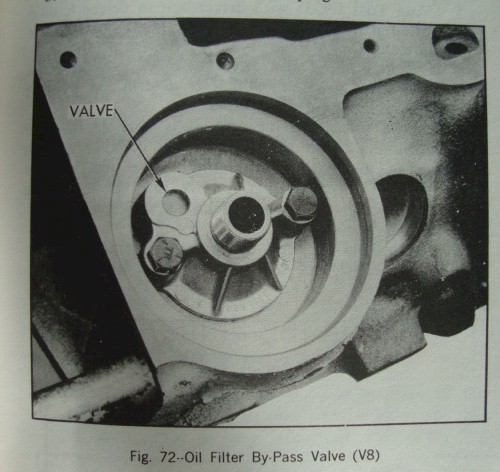

SB and BB Chevy's already has an anti drain back valve in the oil filter spin on adaptor.



Break in your cam with Joe Gibbs BR Oil.

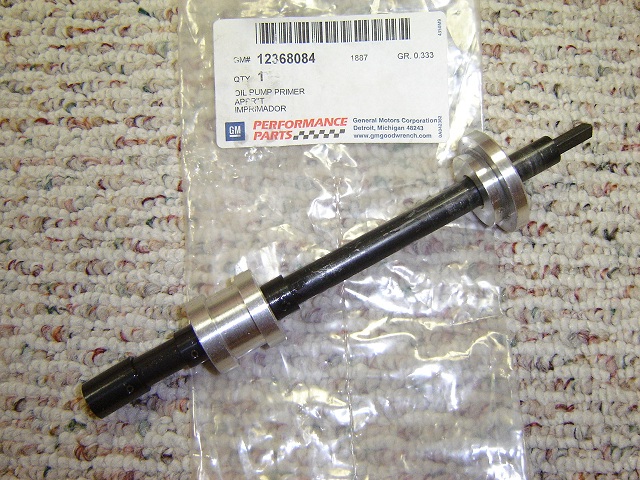

Prime Tool

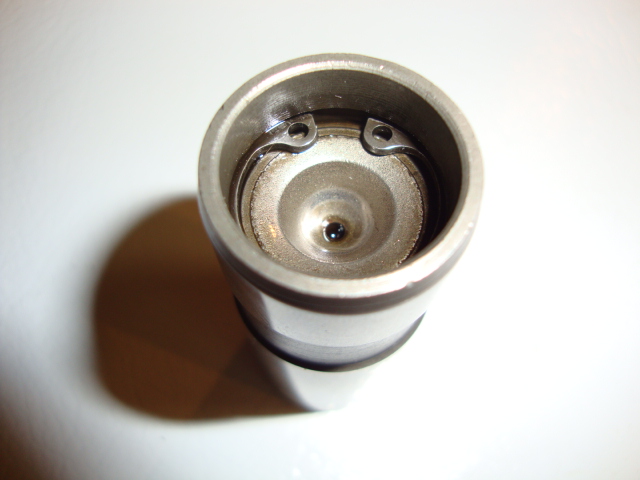

Cam and Solid Lifters

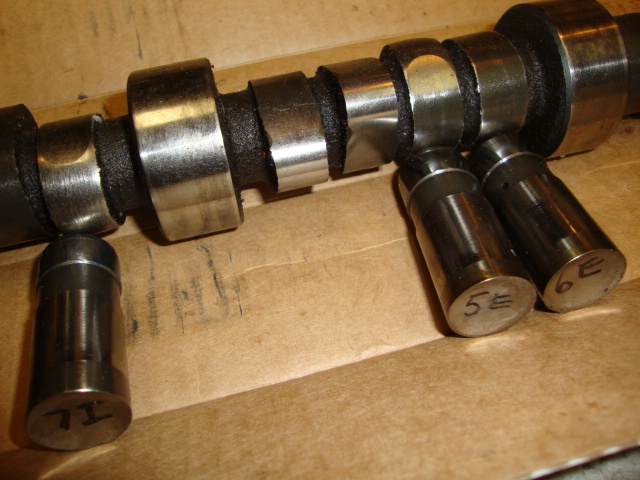

Wiped 3 lobes on the solid lifter cam due to lack of ZDDP after about 43,000 miles. It was a slow wear.

Pic on the right, shows the 1st lifter (2E) good compared to the other 3 concaved lifters.

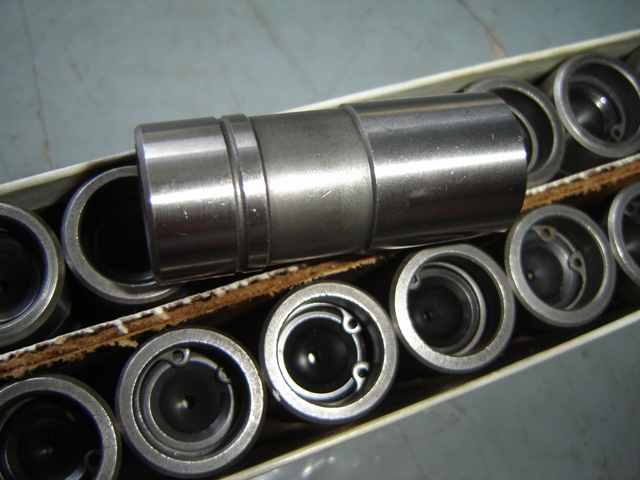

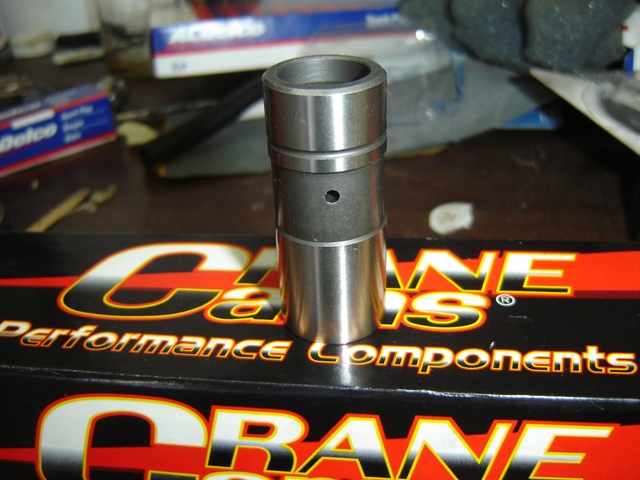

Crane Solid Lifters Part # 99250-16

New





Valve Cover Gaskets

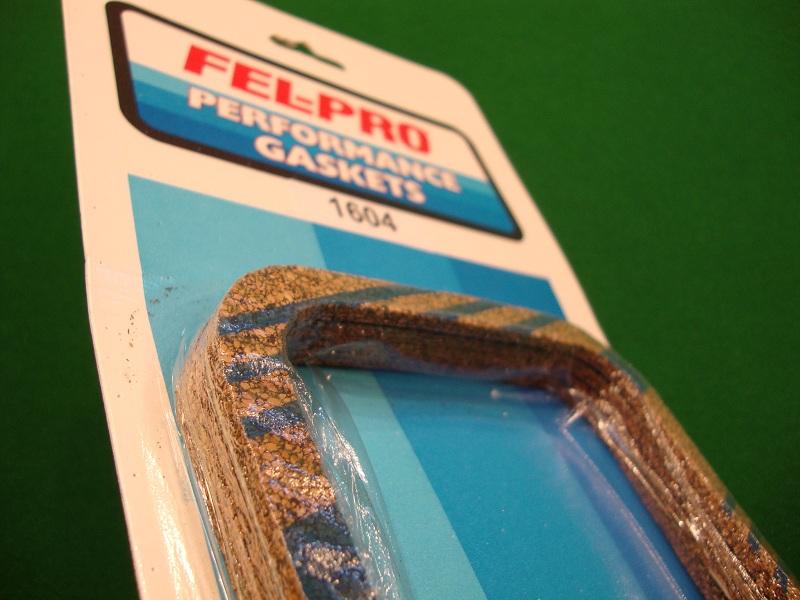

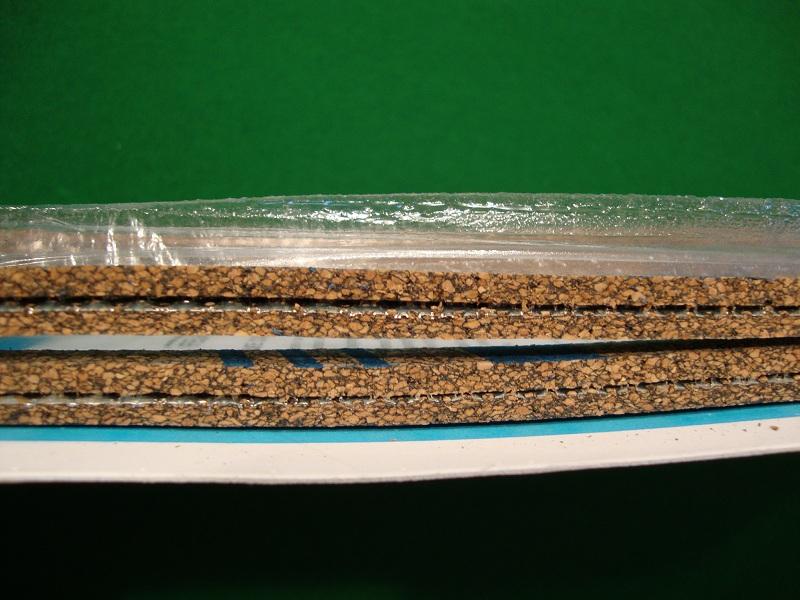

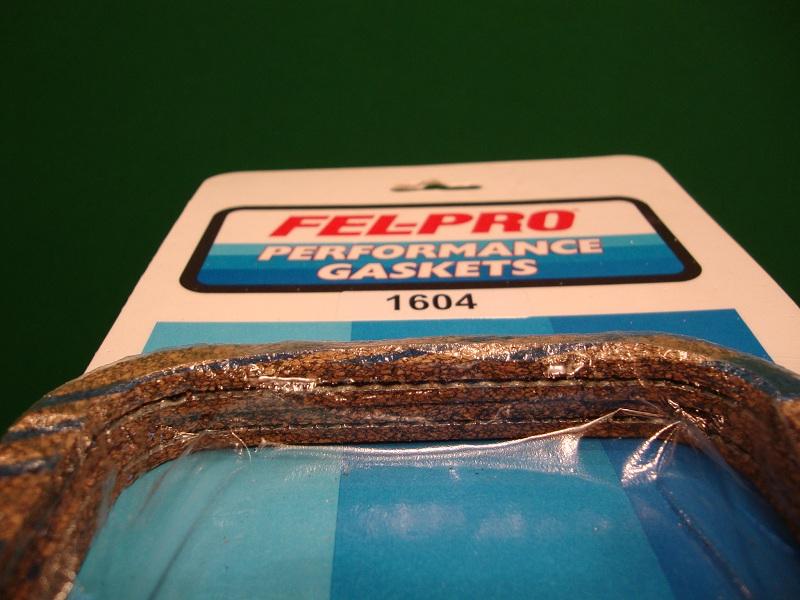

Felpro 1604 Cork/Rubber with Steel Core Valve Cover Gaskets 1/4" thick with a metal shim in the middle





1970 Z28 Valve Covers

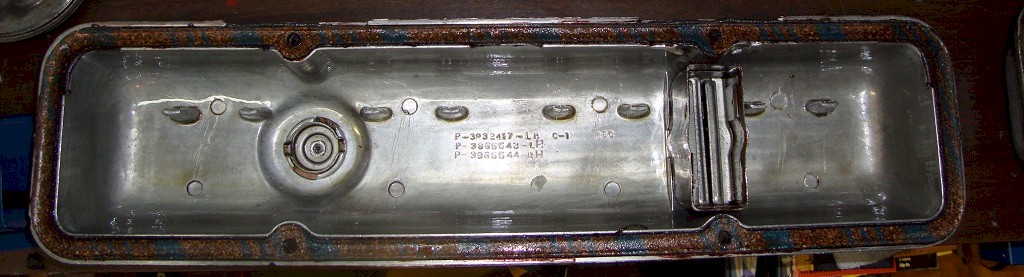

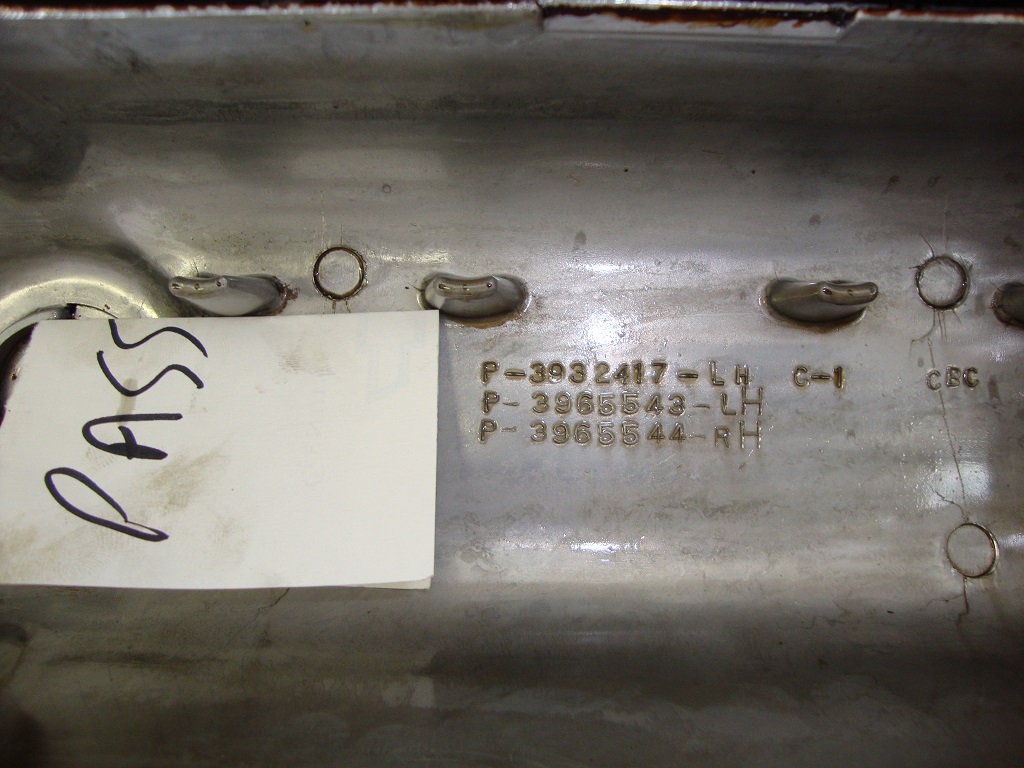

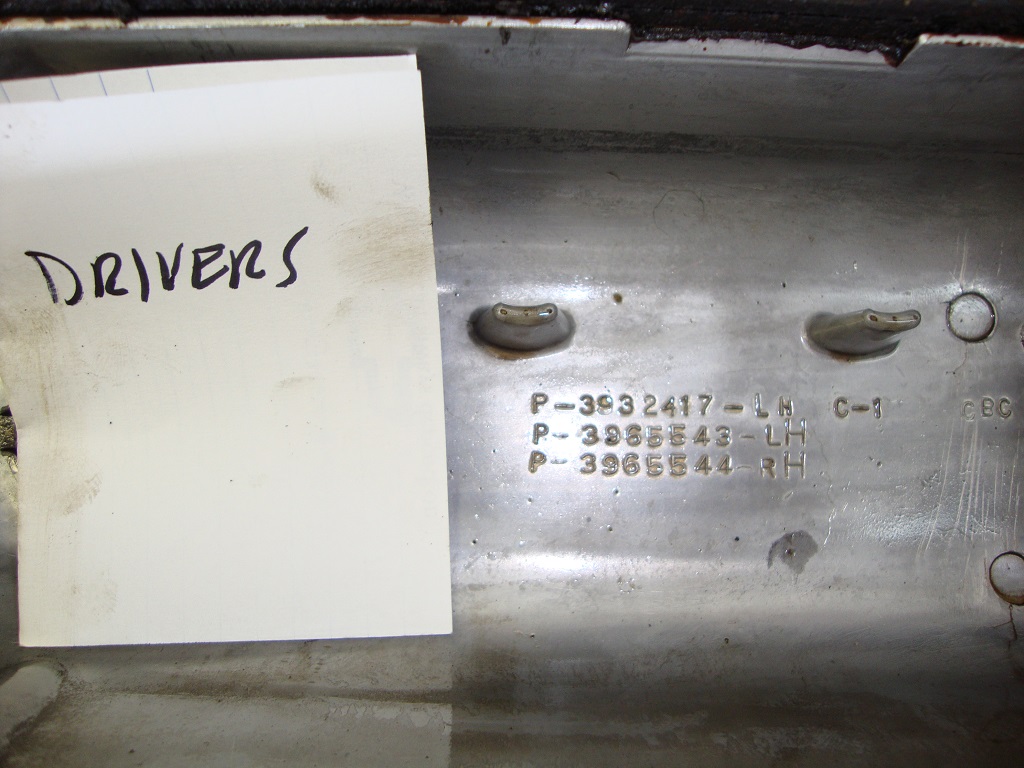

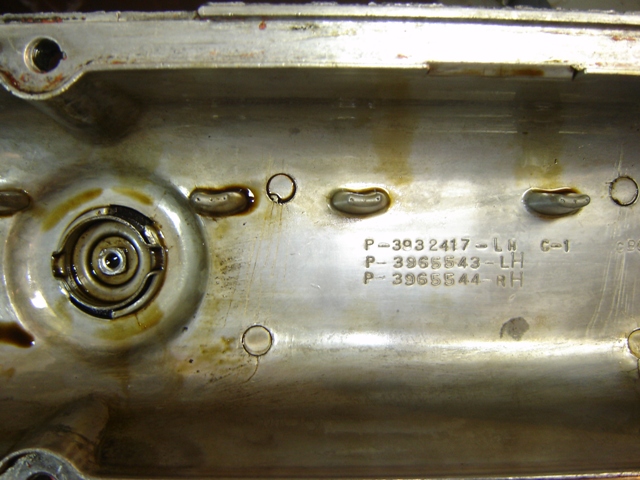

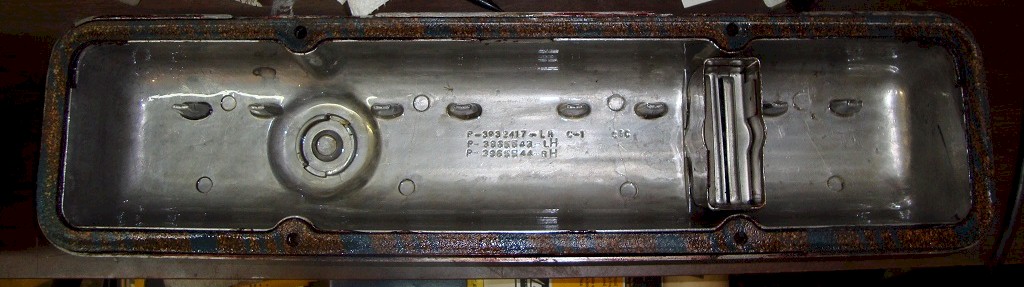

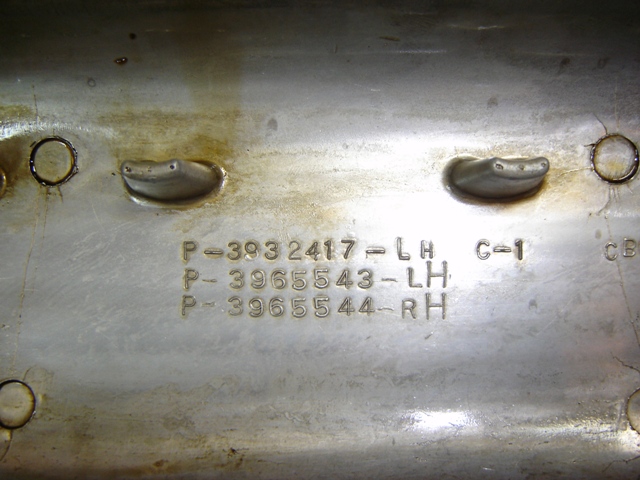

Valve Cover inside numbers

P - 3932417 - LH    C-1   CBC

P - 3965543 - LH

P - 3965544 - RH



The valve cover cut outs that face the intake manifold are 3" long, 2 on each valve cover.



The valve covers were used on:

Late 1969 Z28,

1970 Z28

1970 LT1 Vette

1970 COPO LT1 Nova

1970 sYc LT1 Nova



The oil drippers are:

3/4" high

7/16" wide at the top

11/16" wide at the bottom

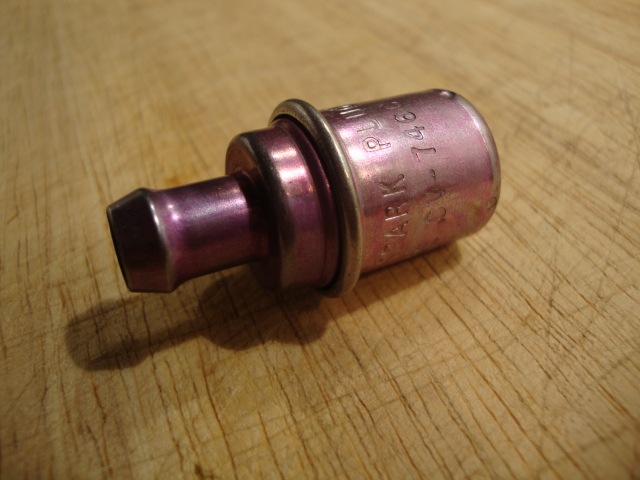

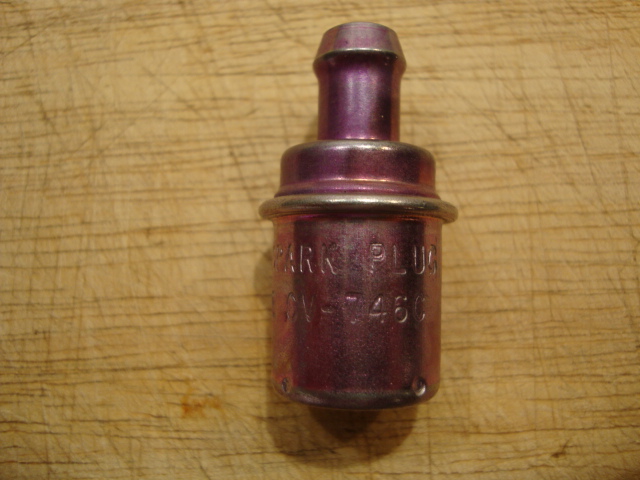

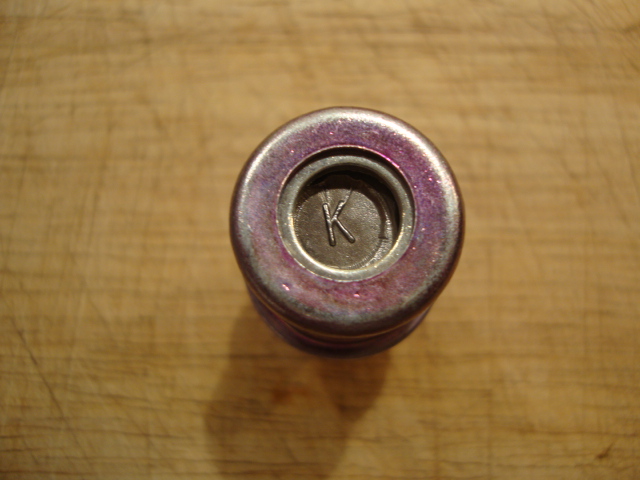

PCV Valve

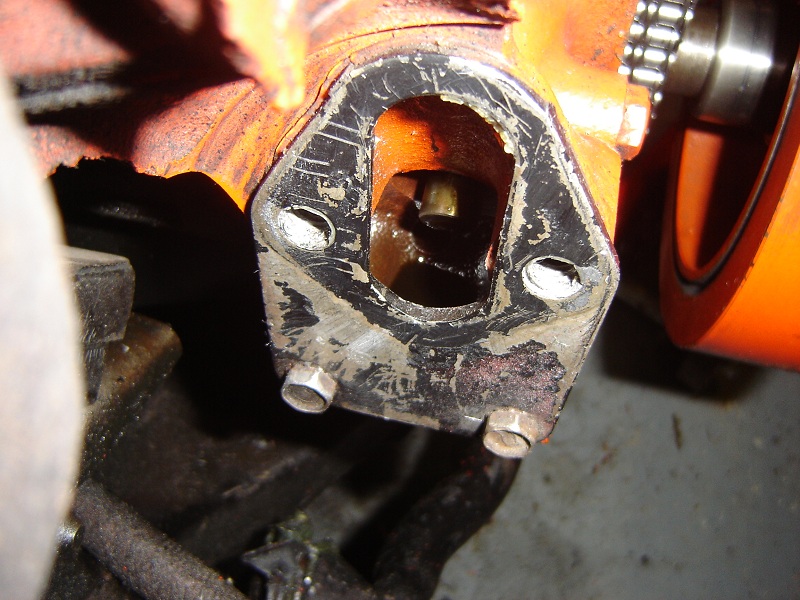

Fuel Pump Plate

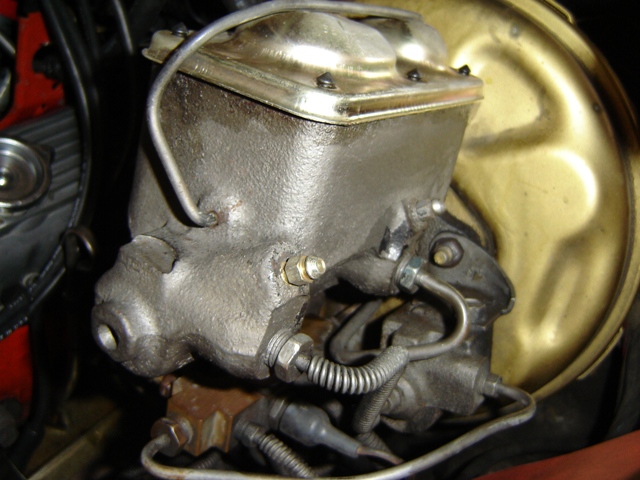

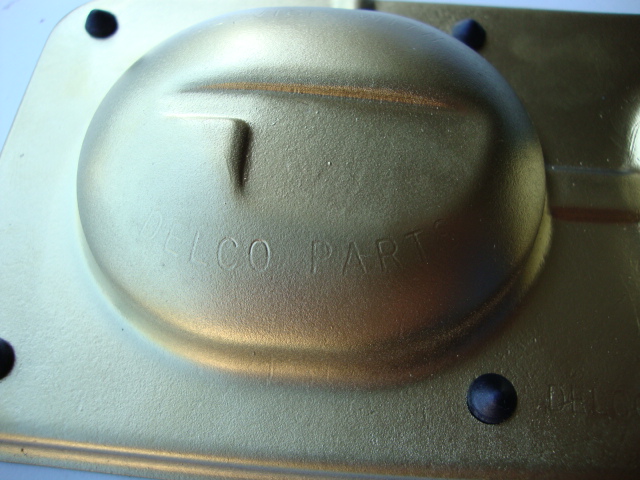

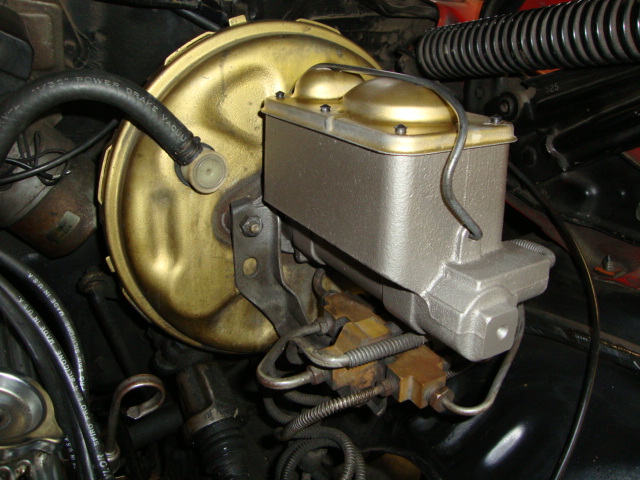

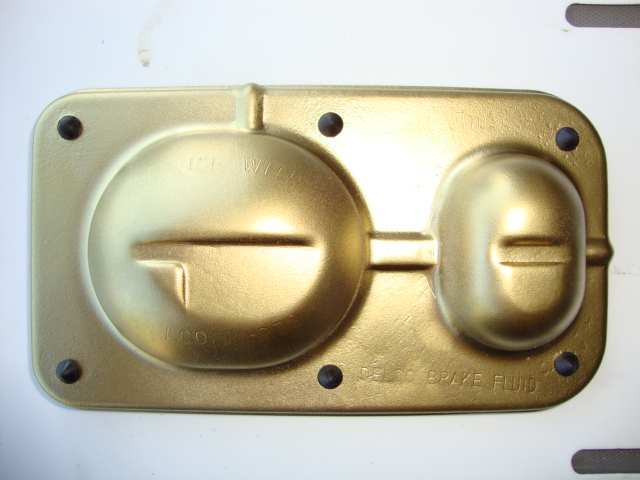

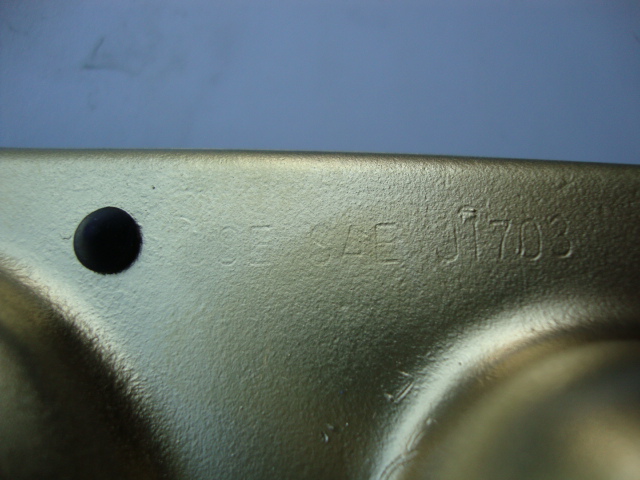

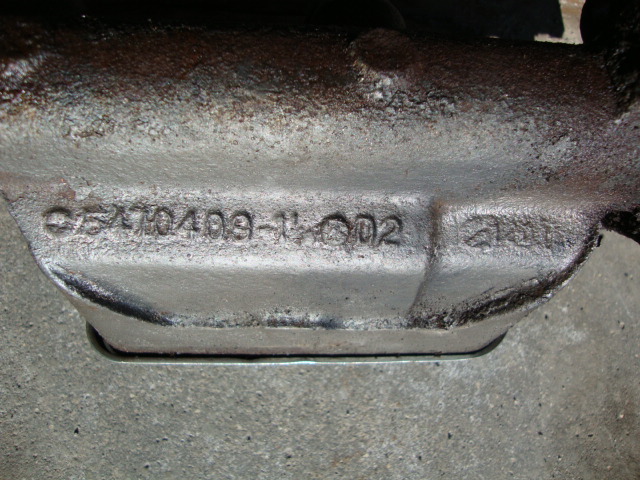

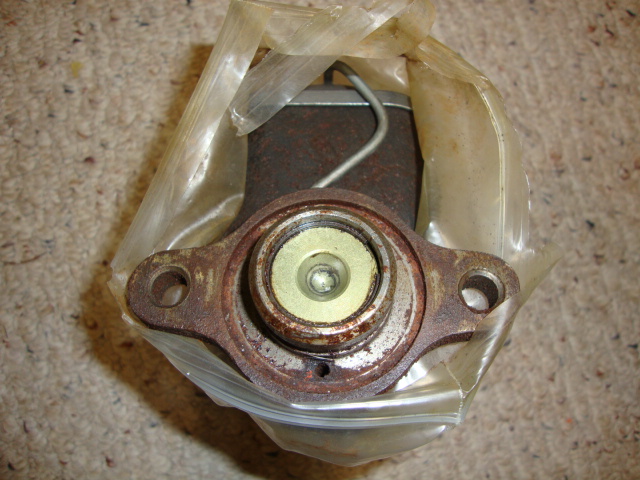

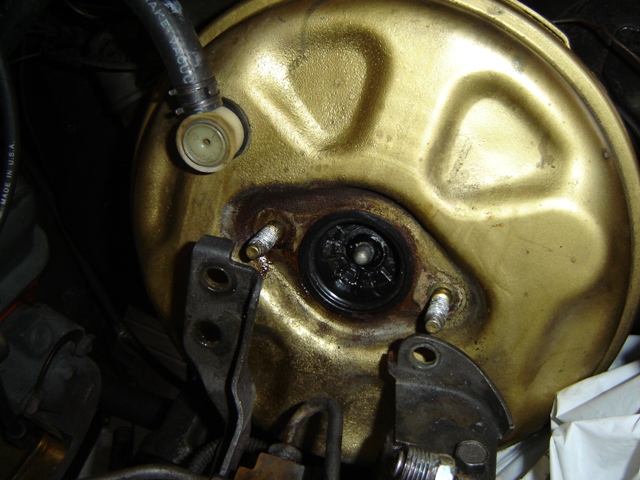

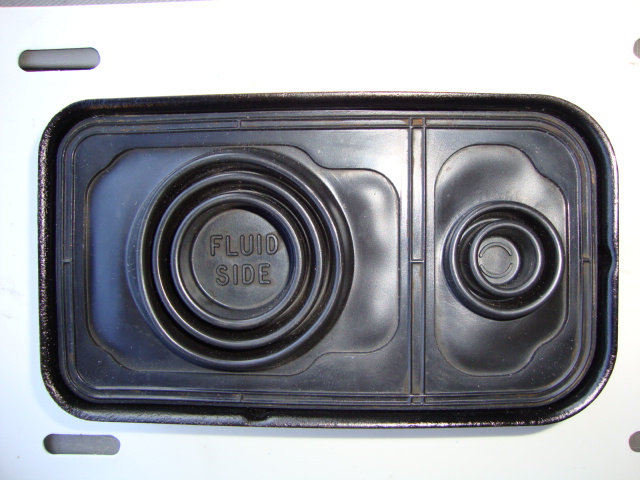

Master Cylinder and Cover

Original MC will have 2 bleeders. Due to leaks I replaced mine with a new one from NAPA and kept the orig in the box.

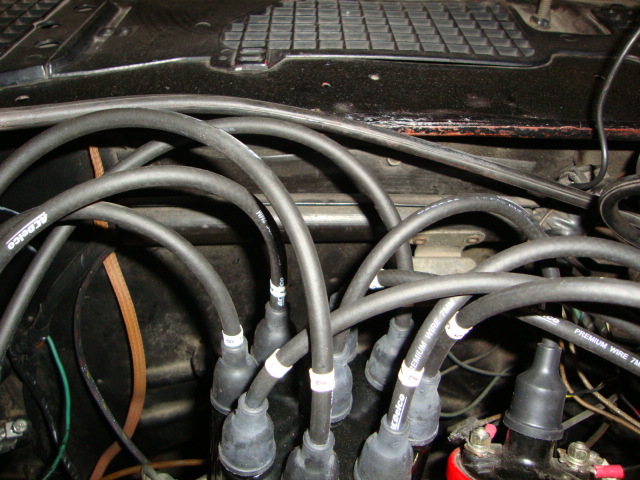

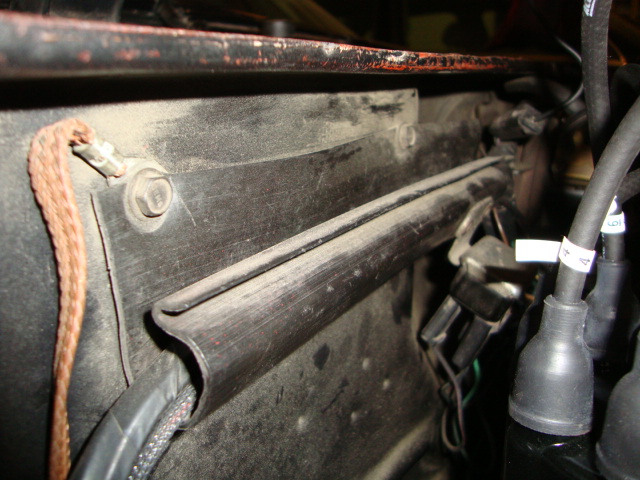

Wire Gutter 8.25" in Length

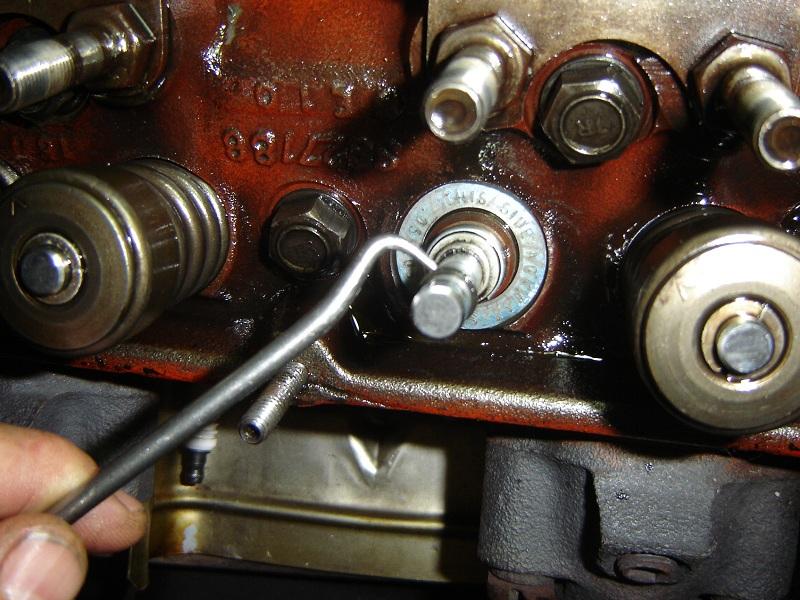

Valve Stem O Ring Oil Seal

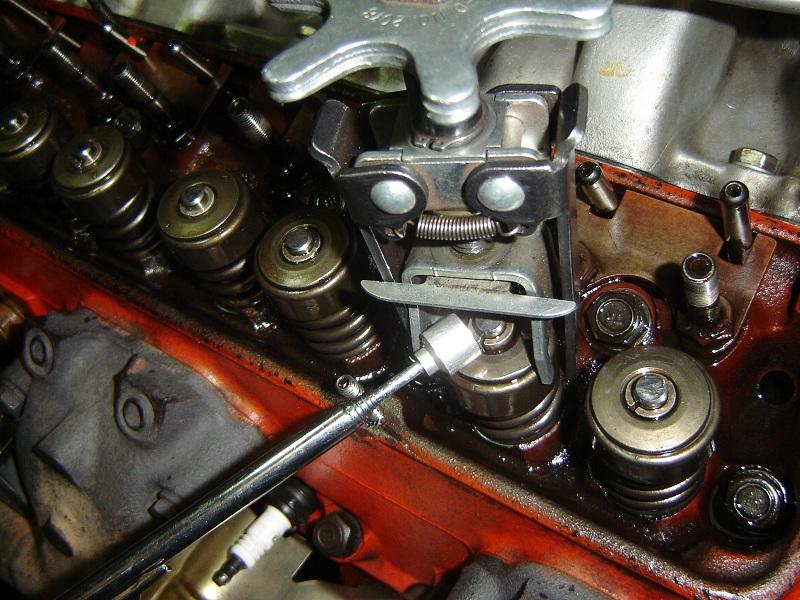

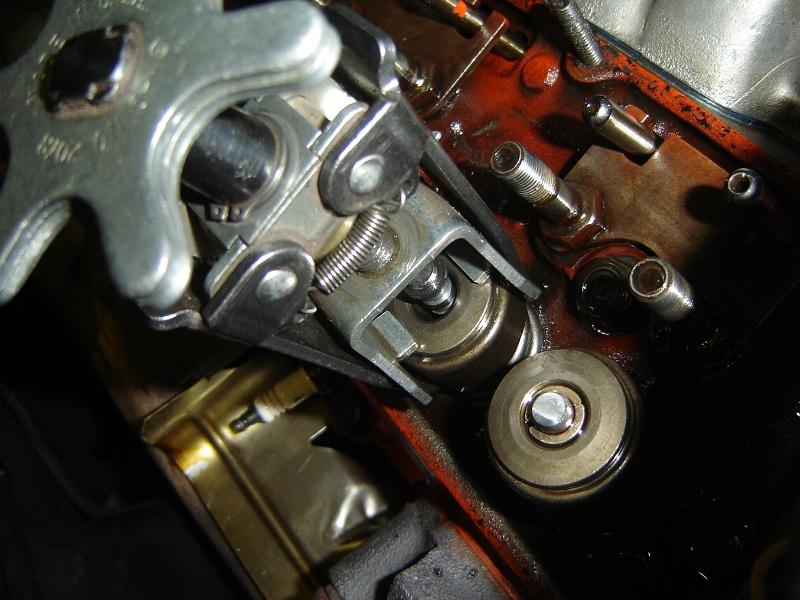

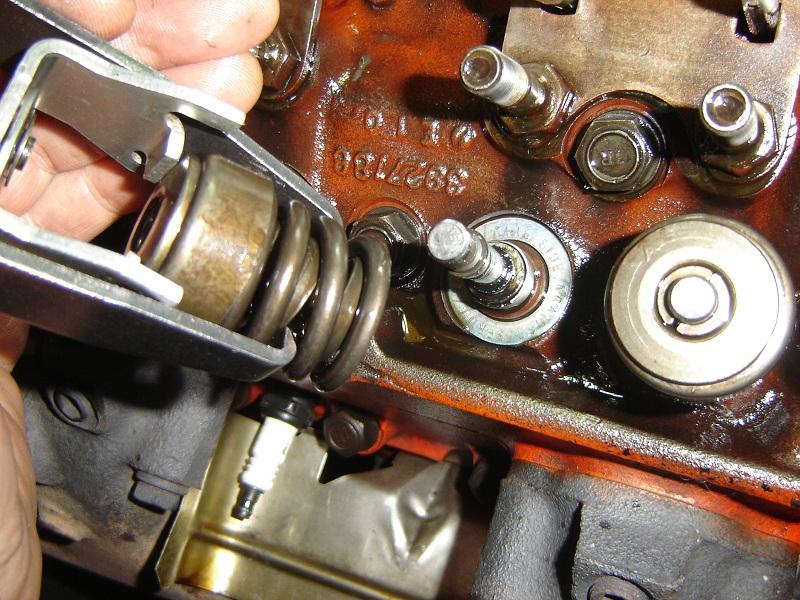

Compress spring, Grab keeper locks with magnet, Remove spring, Remove old oil valve seal O ring

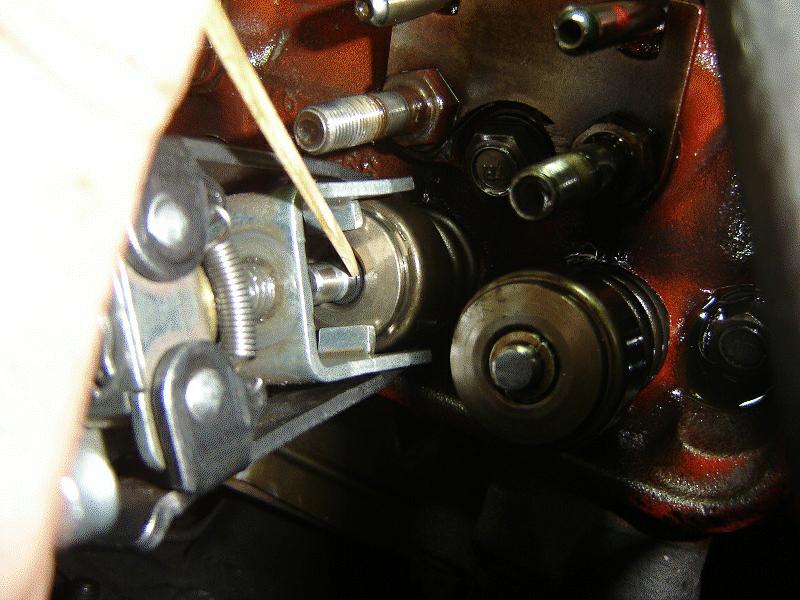

Install new O ring on stem, then push in groove with wooden coffee stir stick

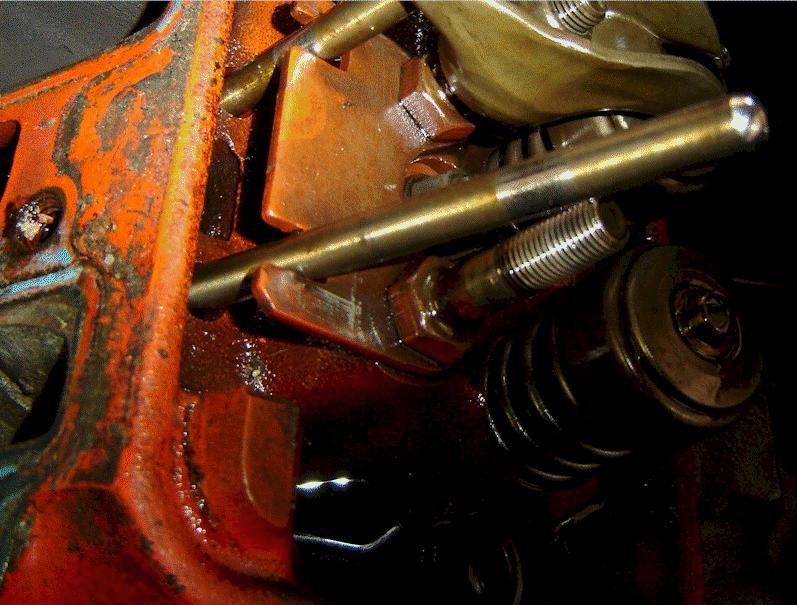

Stock Pushrod

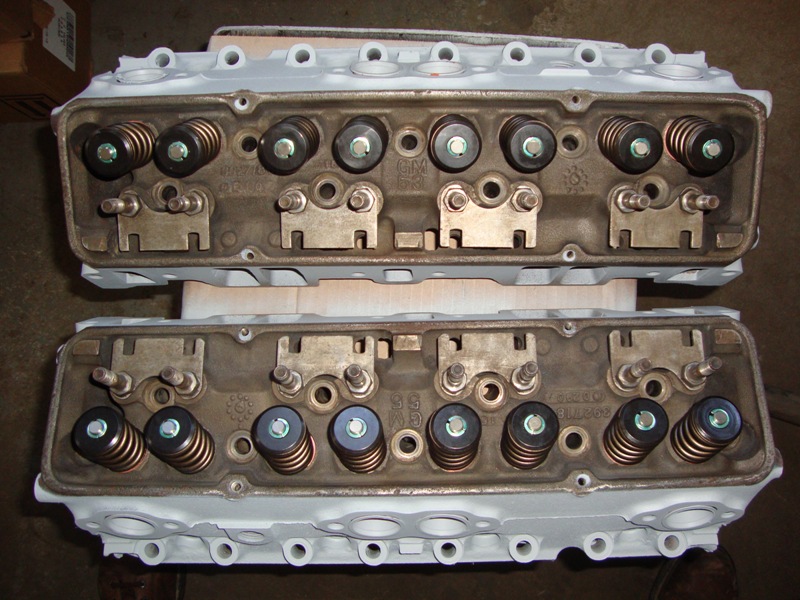

3927186 Heads

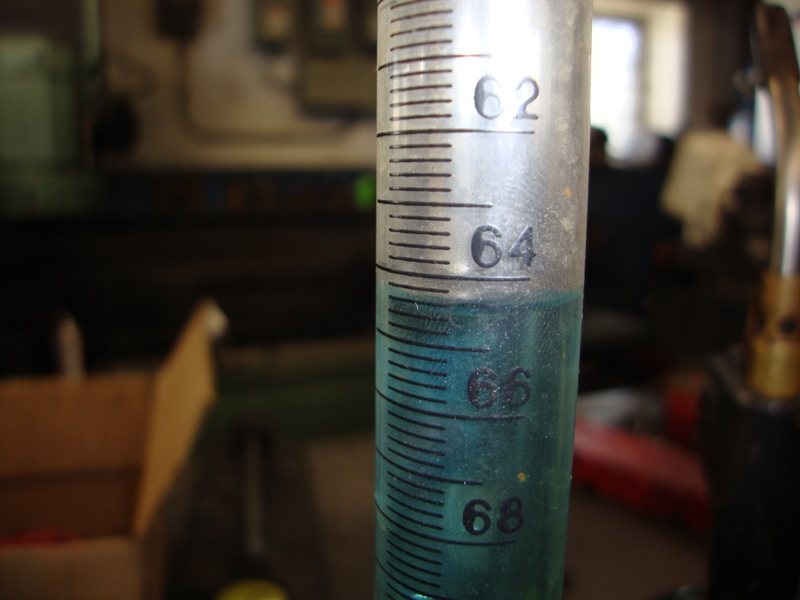

cc check - 64.25 cc

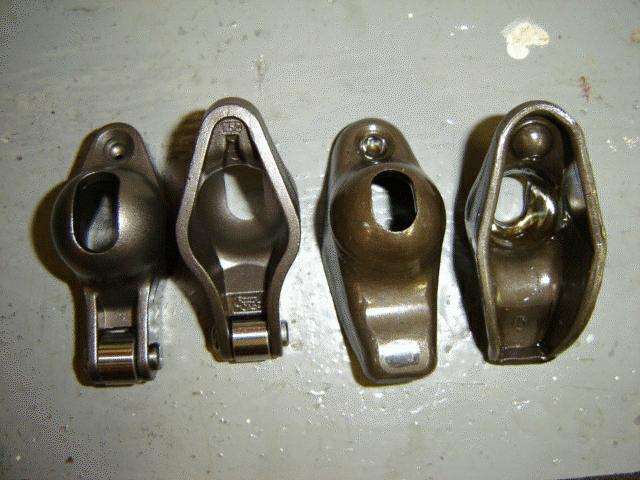

Using 1.52 Comp Magnum Roller Tip Rockers, part # 1412-16 after my cam swap

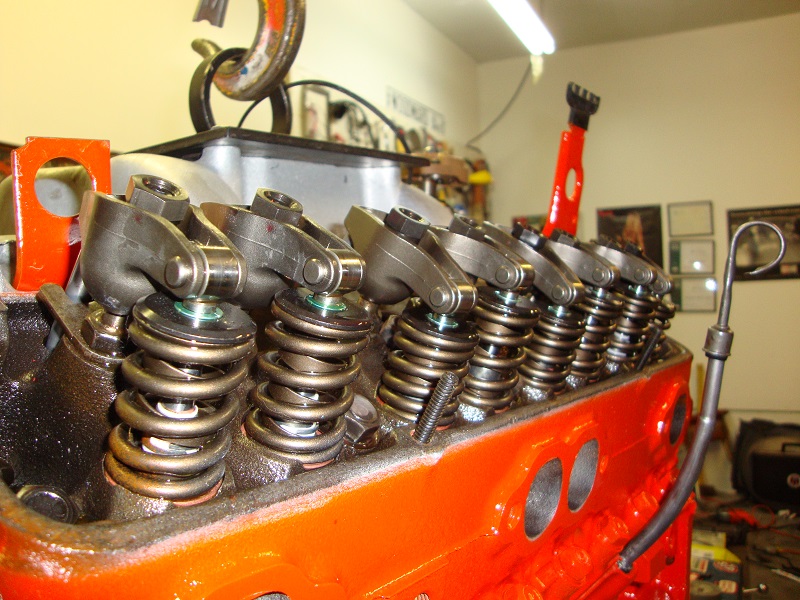

Comp Short Rocker Arm Locknuts



Note your drippers will rub on some. I decided to leave them off.

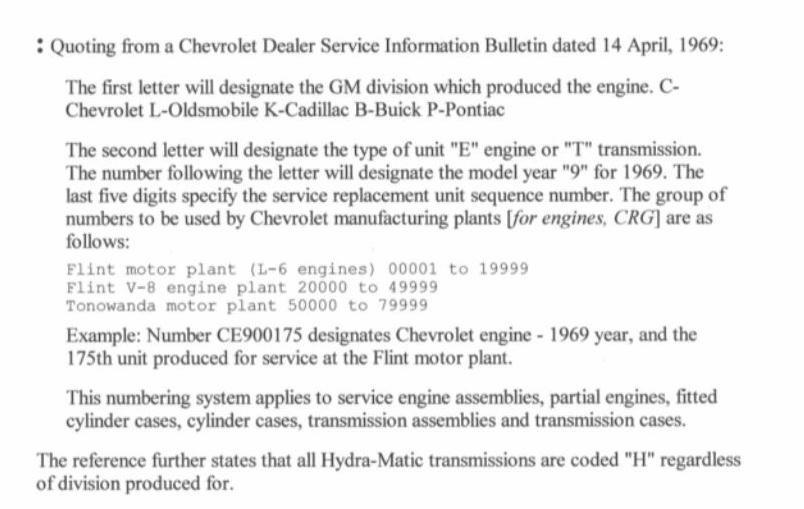

What's a CE block?

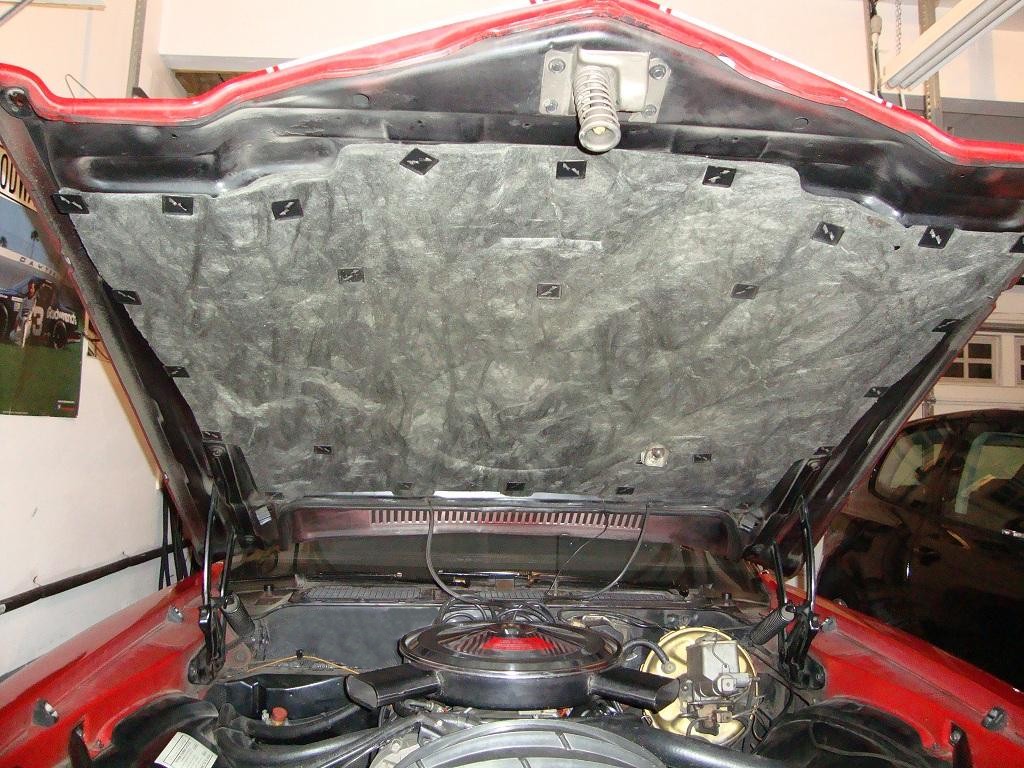

Under hood Insulation





It was part of the Z87 customer interior option.



Available from Chuck Sharin at http://www.nastyz28.com/forum/index.php

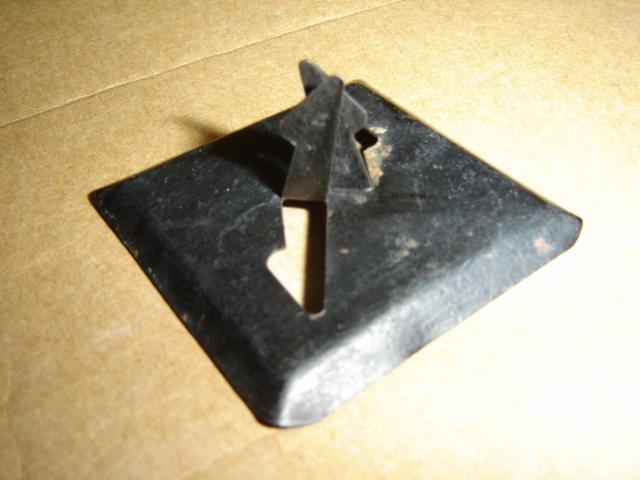

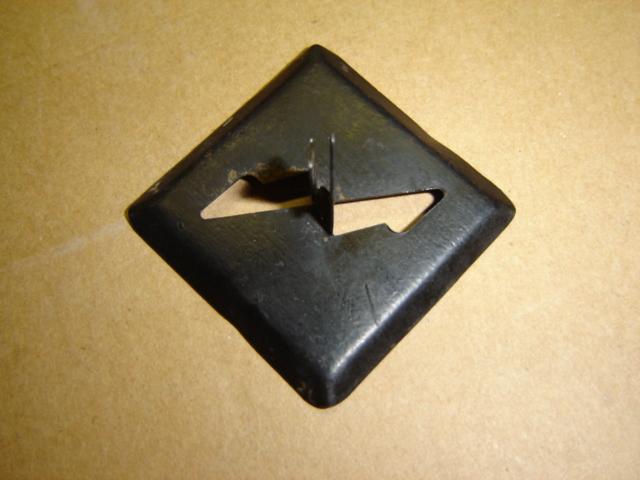

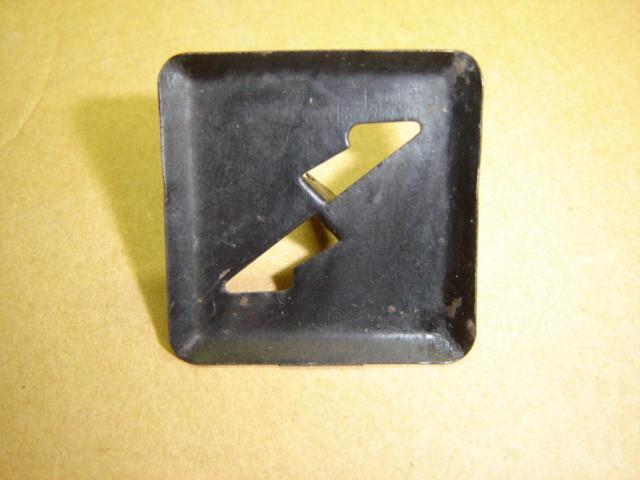

Factory metal hood insulation clips

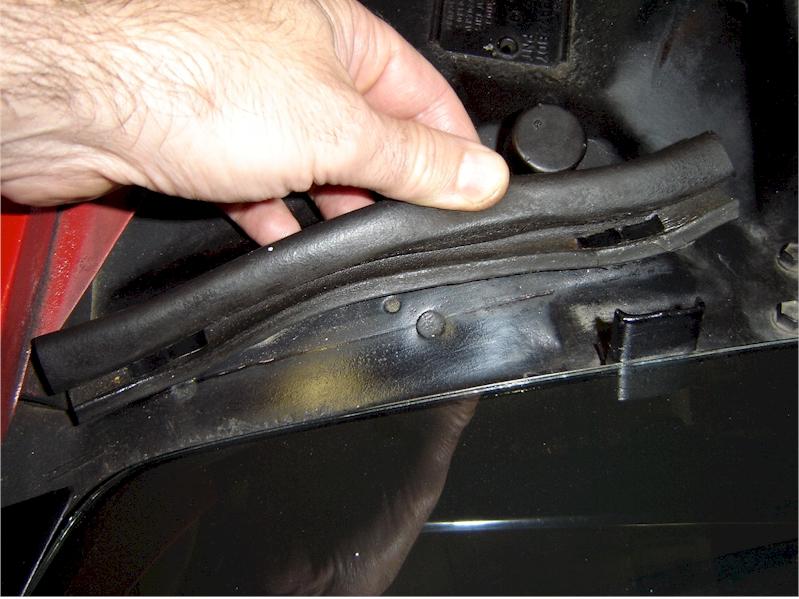

Side Cowl Weatherstrip











Balancer

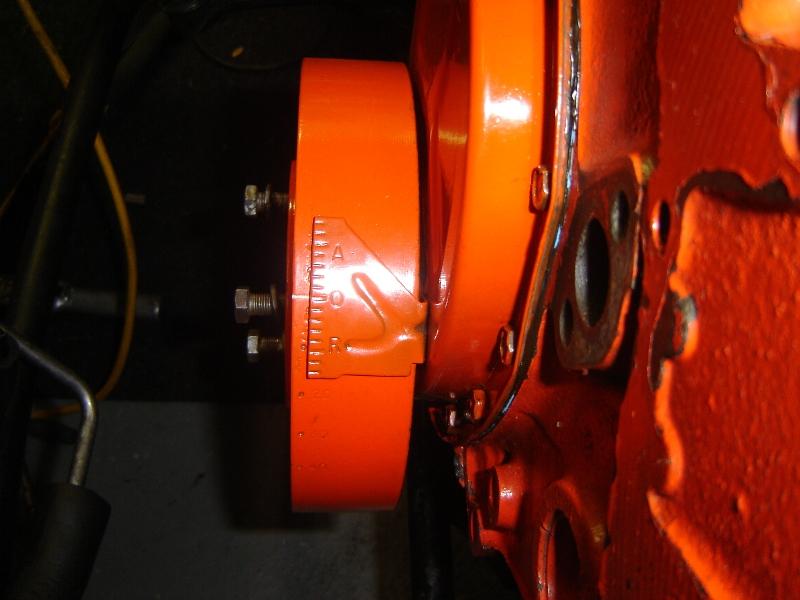

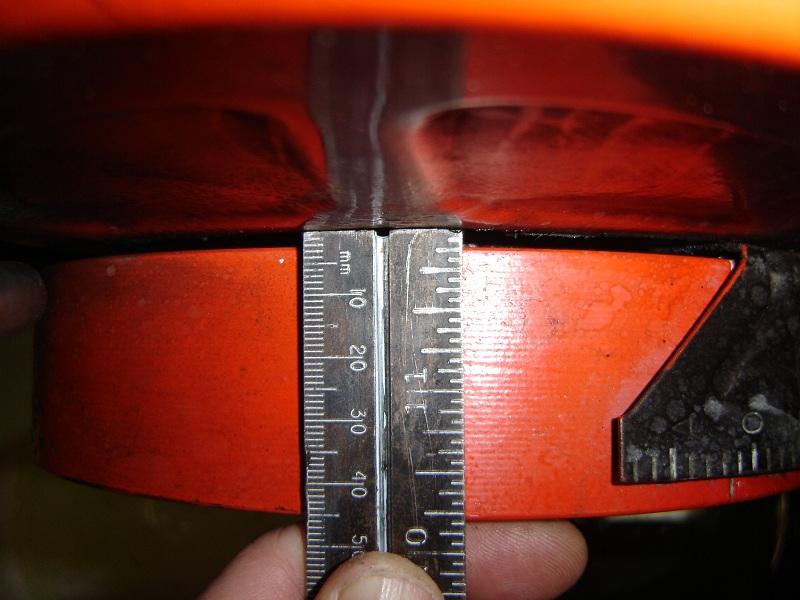

Balancer Fully Installed and timing tab



If you need to add the 180* mark on your balancer for setting valves then get yourself a seamstress measuring tape

and using masking tape, tape the start end of the measuring tape on the balancer line which is TDC to #1 cyl and

place a mark 12.5" around for your 180* location for a 8" balancer.






Pulleys

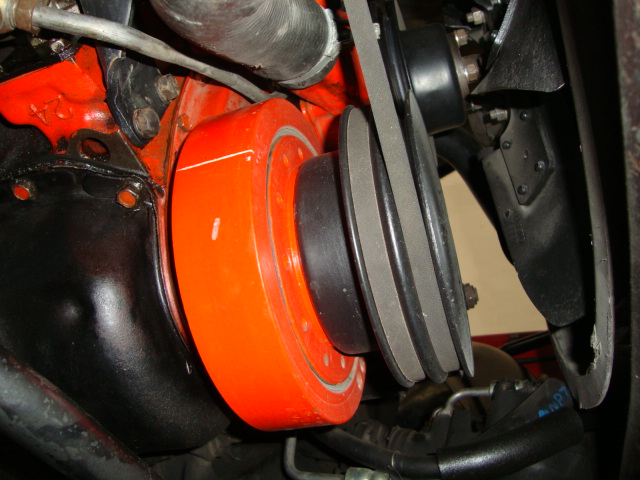

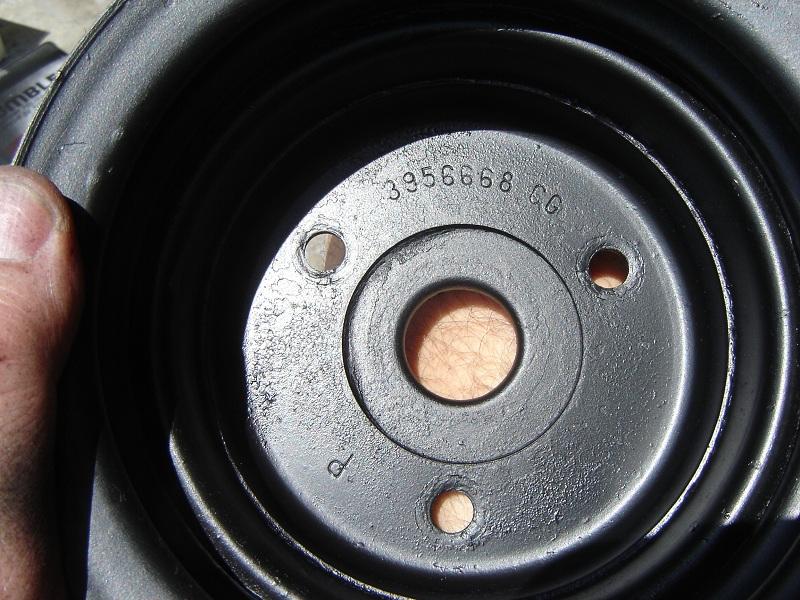

Crank Pulley

part # 3956668 CG

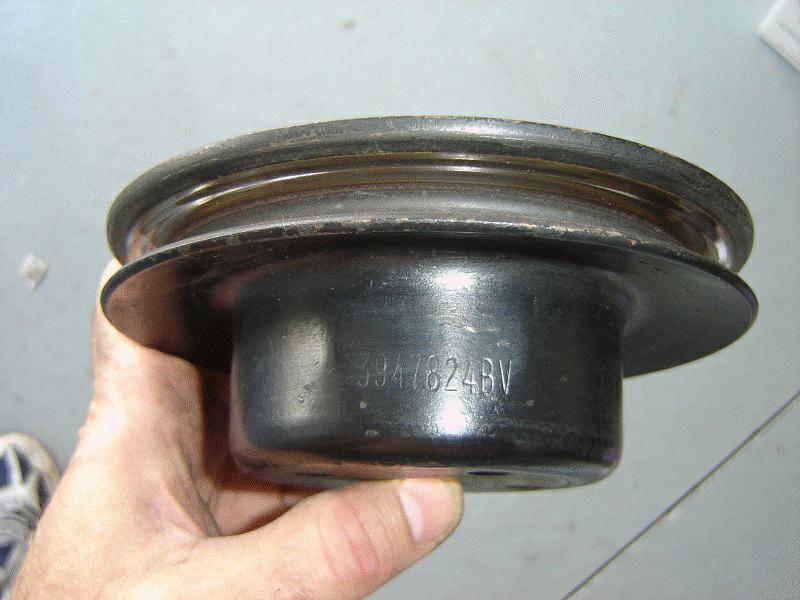

Water Pump Pulley





Part # 3947824BV

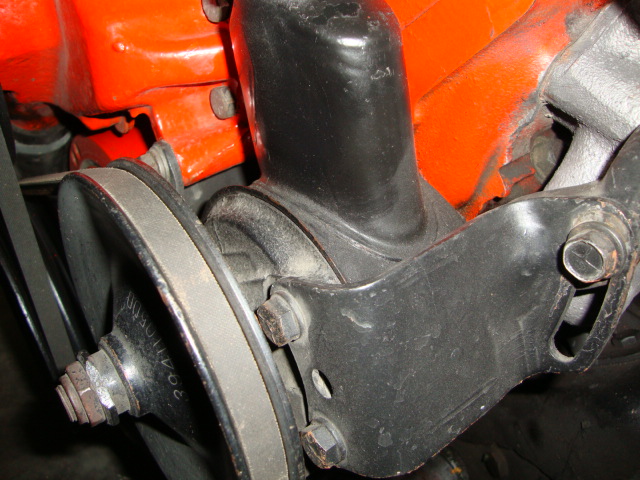

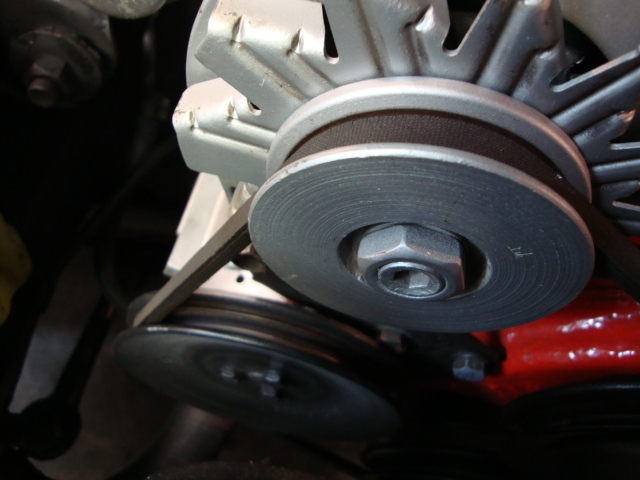

Fan Belt









Accelerator Cable

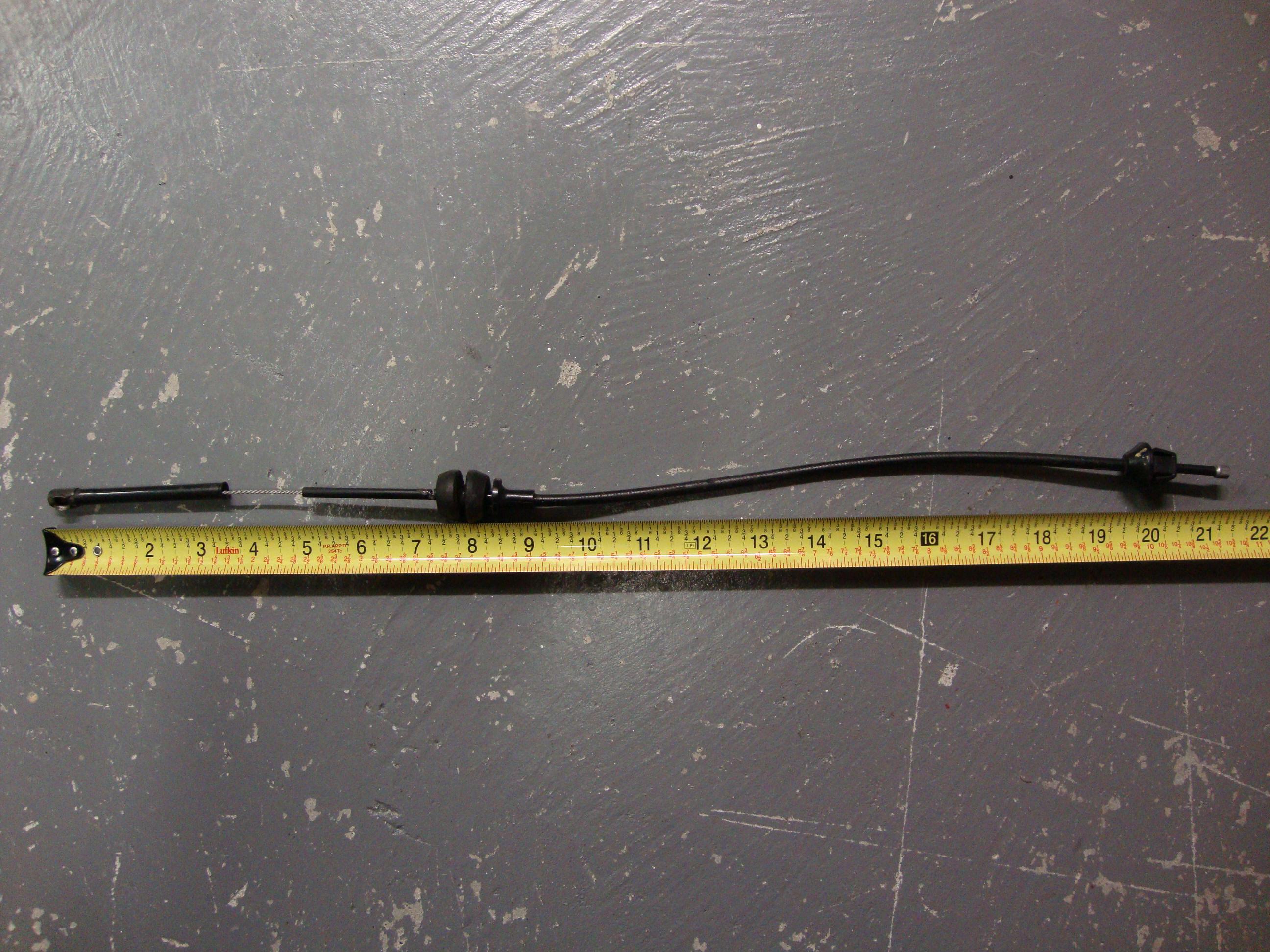

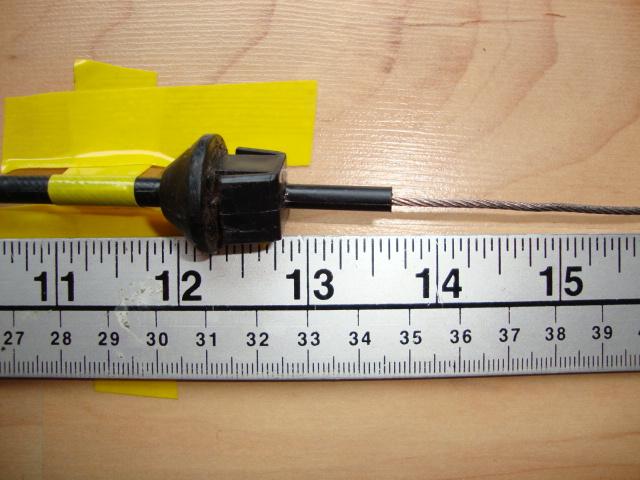

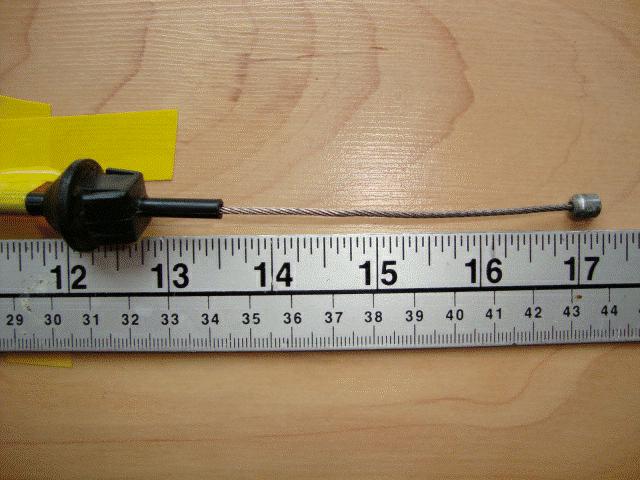

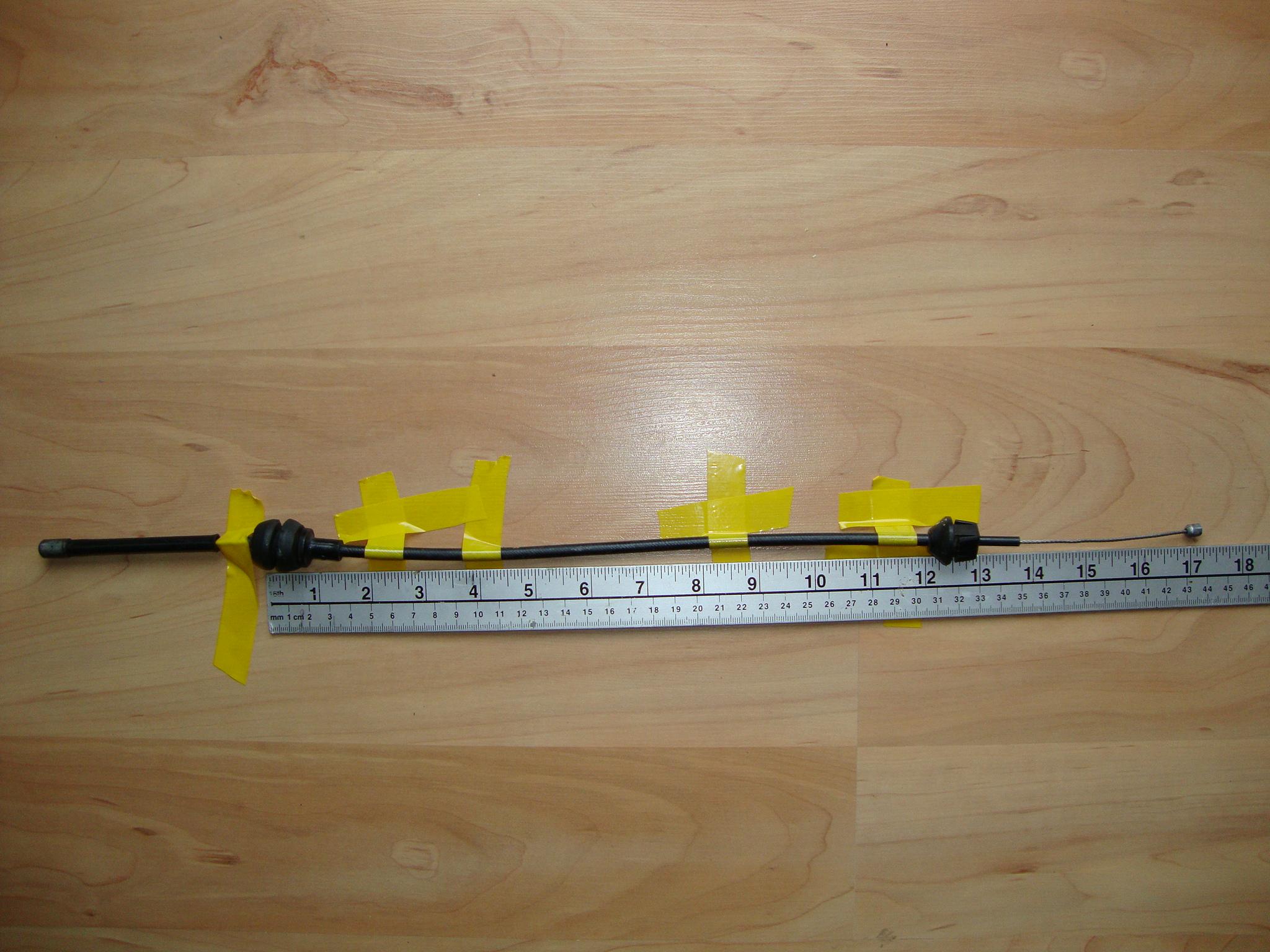

3972296 Accelerator Cable?

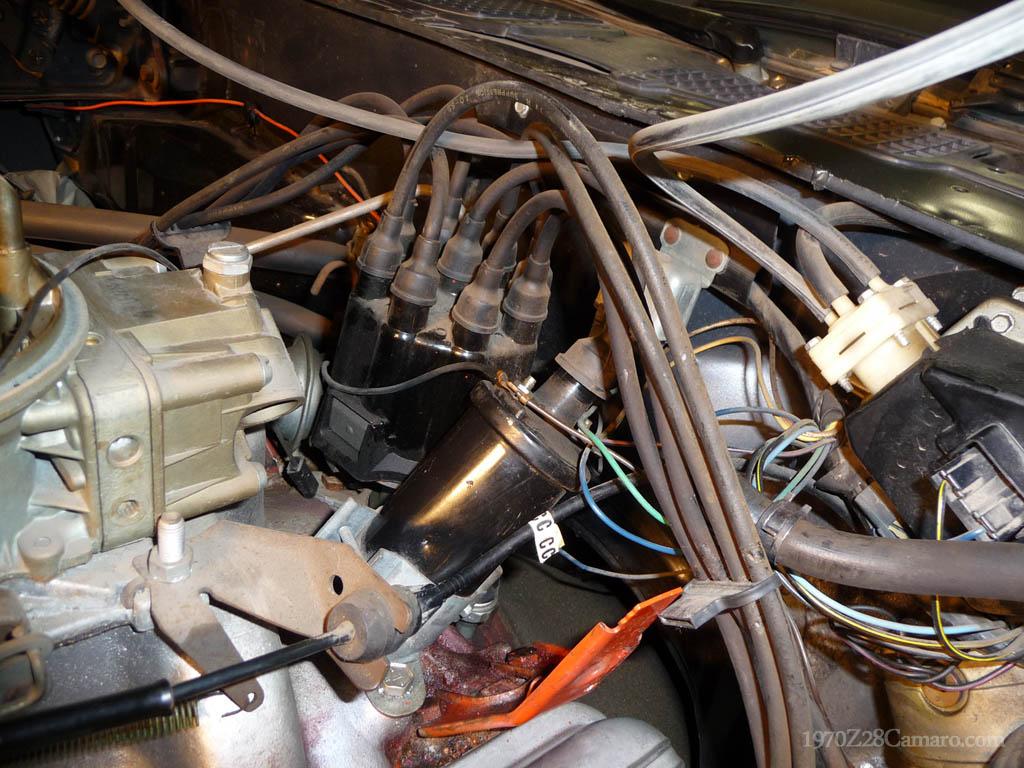

1100 mi LA automatic 70 Z28 showing the accelerator cable

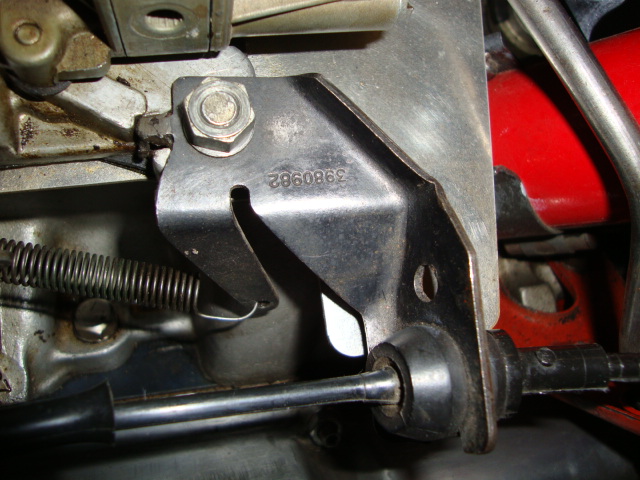

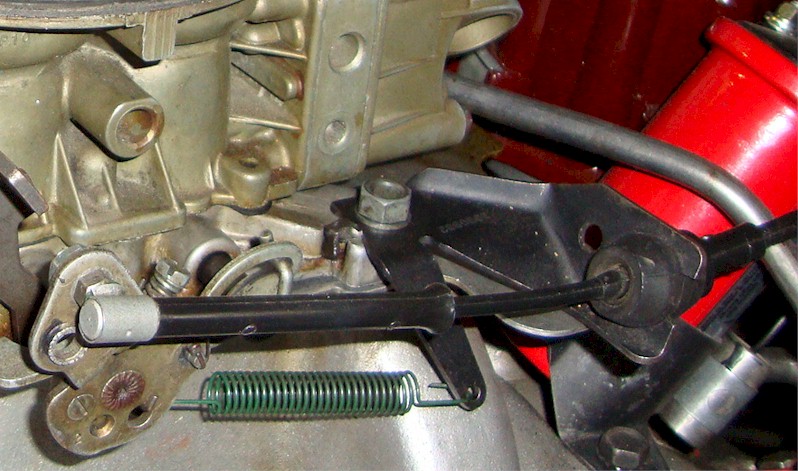

Accelerator cable/spring/bracket

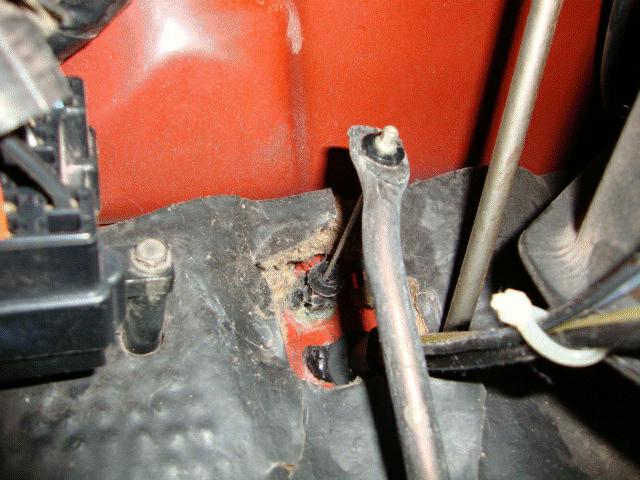

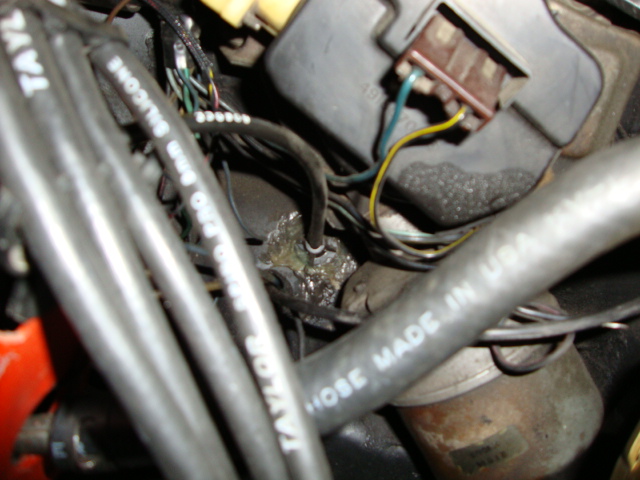

336969 Accelerator cable at interior and engine side



To change the cable at the inside rod end,

Laying on the carpet, squeeze the back of the plastic lock and push it towards you and it'll pop out.

There are slits on the back that compress so it can come out of the hole frontward and locks into place

when you push it back on. The plastic piece has a slit in it so the cable can be slid out and the new one

slid back in.

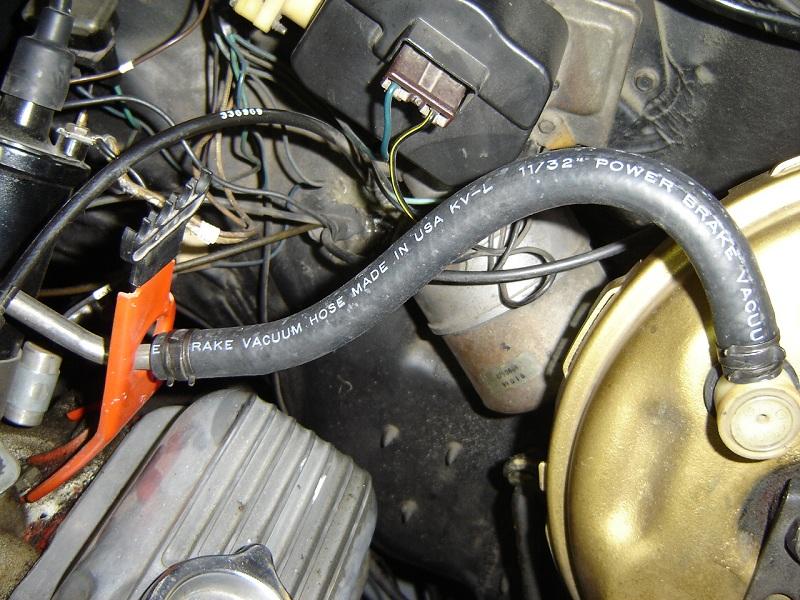

Brake Vacuum Hose

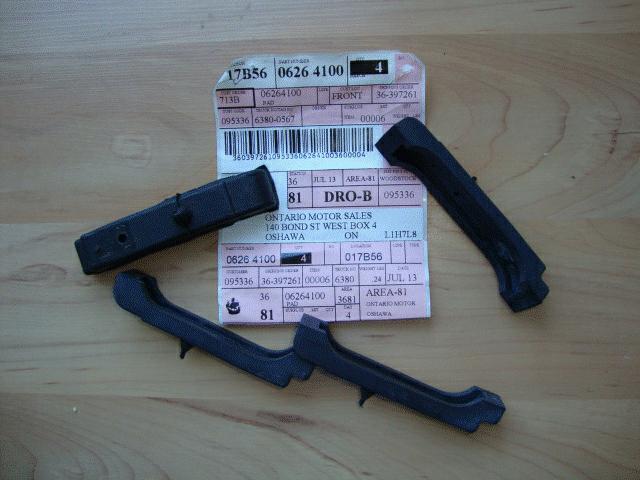

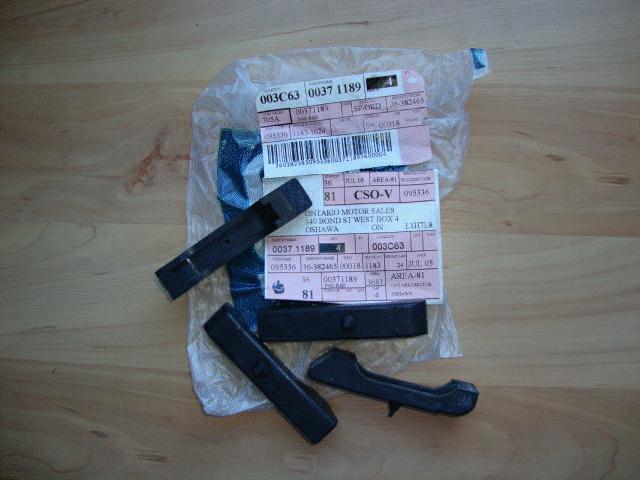

Rad Support Rubber Mounts and Hoses



Used for both upper and lower locations. Same part #, 2 upper and 2 lower per car.



Small block part # 371189  Big block part # 6264100

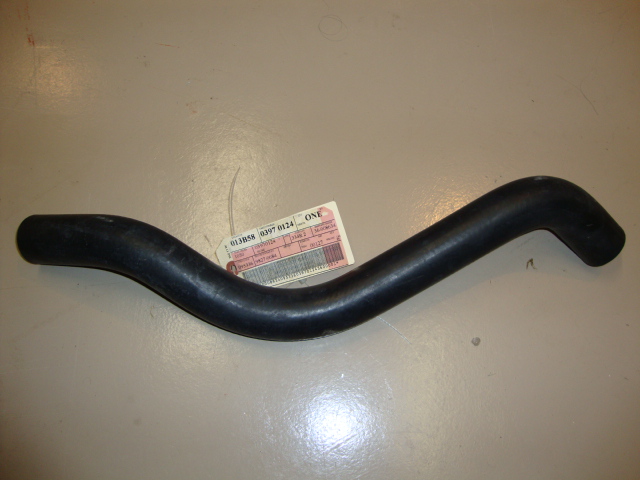

Upper Rad Hose

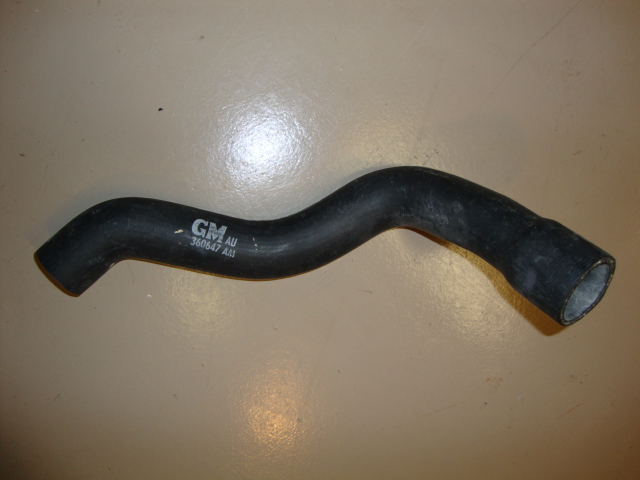

GM Upper rad hose 3970124 and Lower Rad Hose 360647

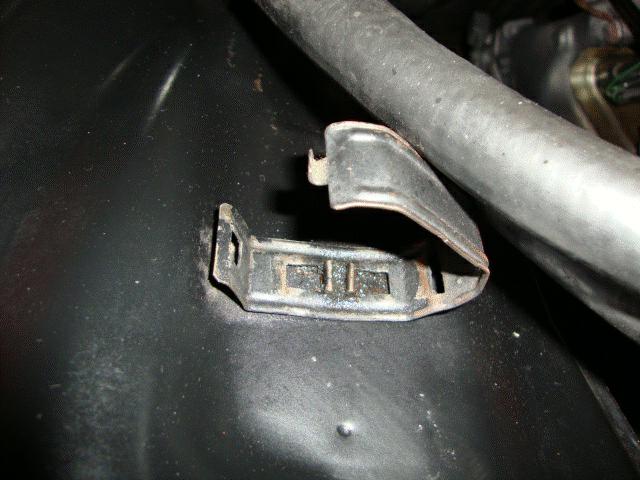

Heater hose clamp

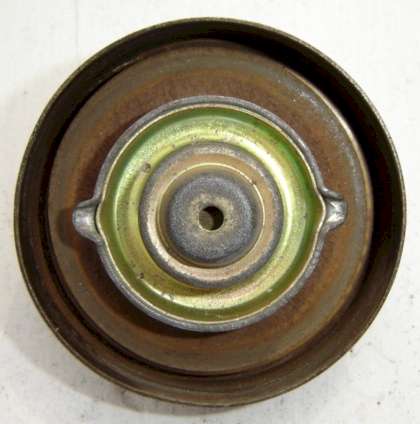

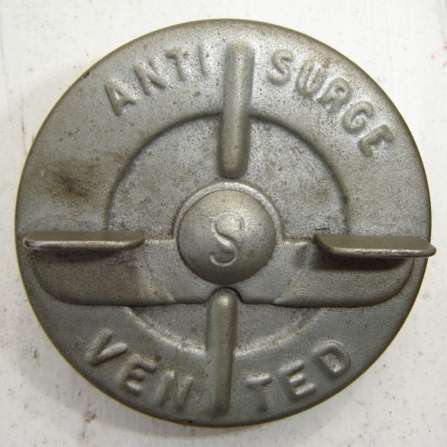

Gas Cap



gas cap front.jpg (22441 bytes) gas cap rear.jpg (20798 bytes)

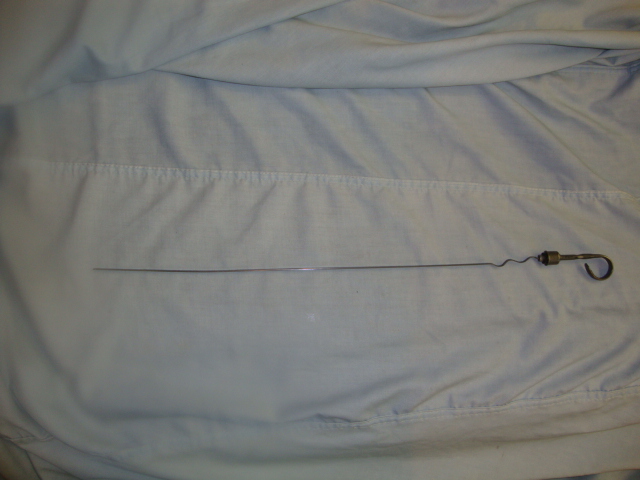

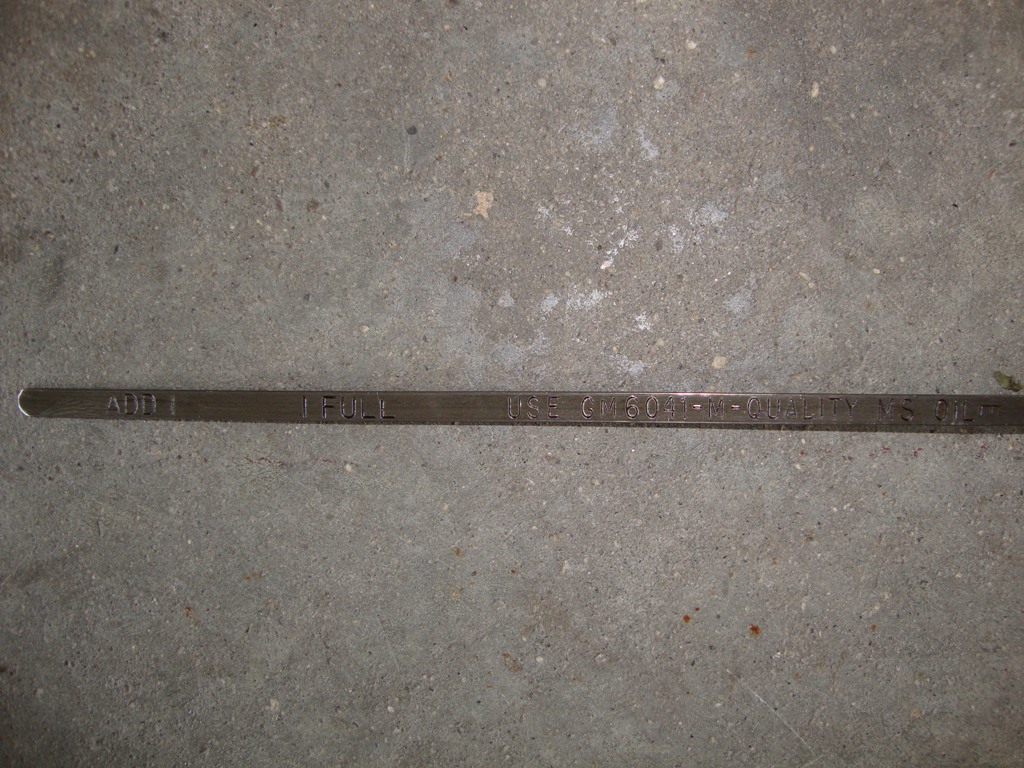

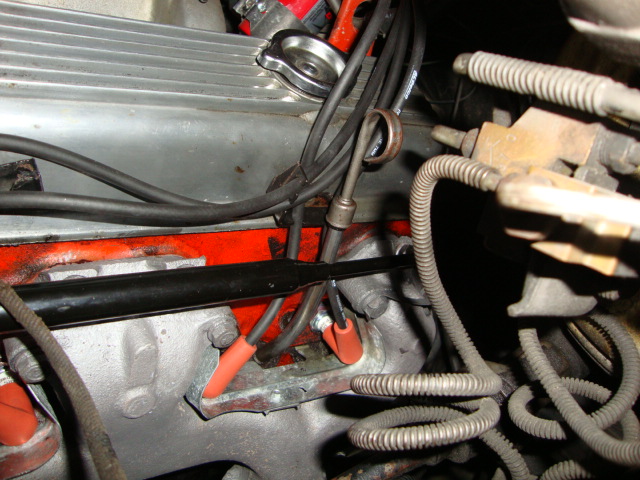

Oil Dipstick

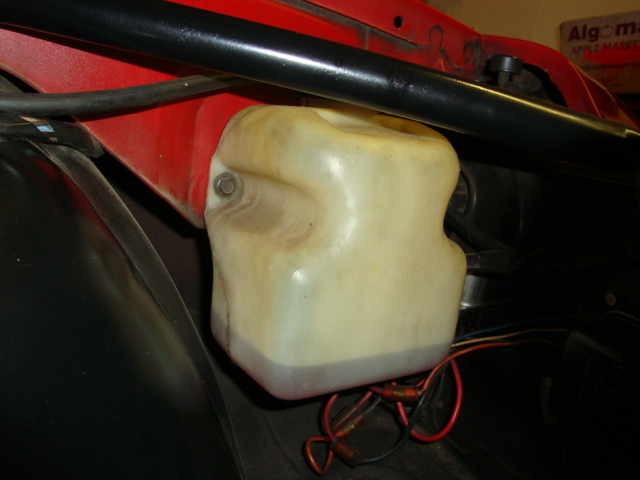

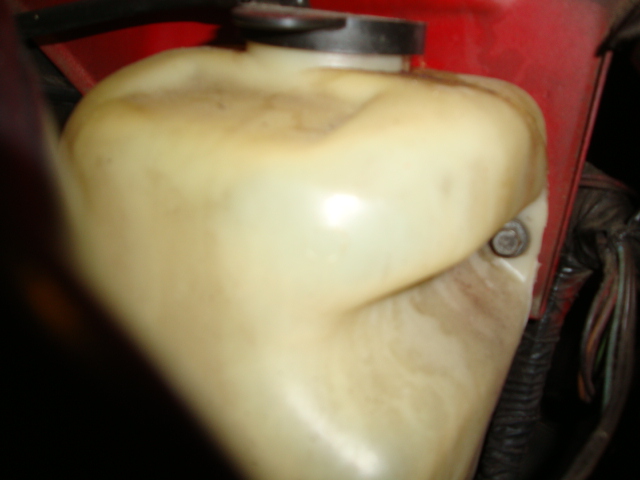

Washer Jug

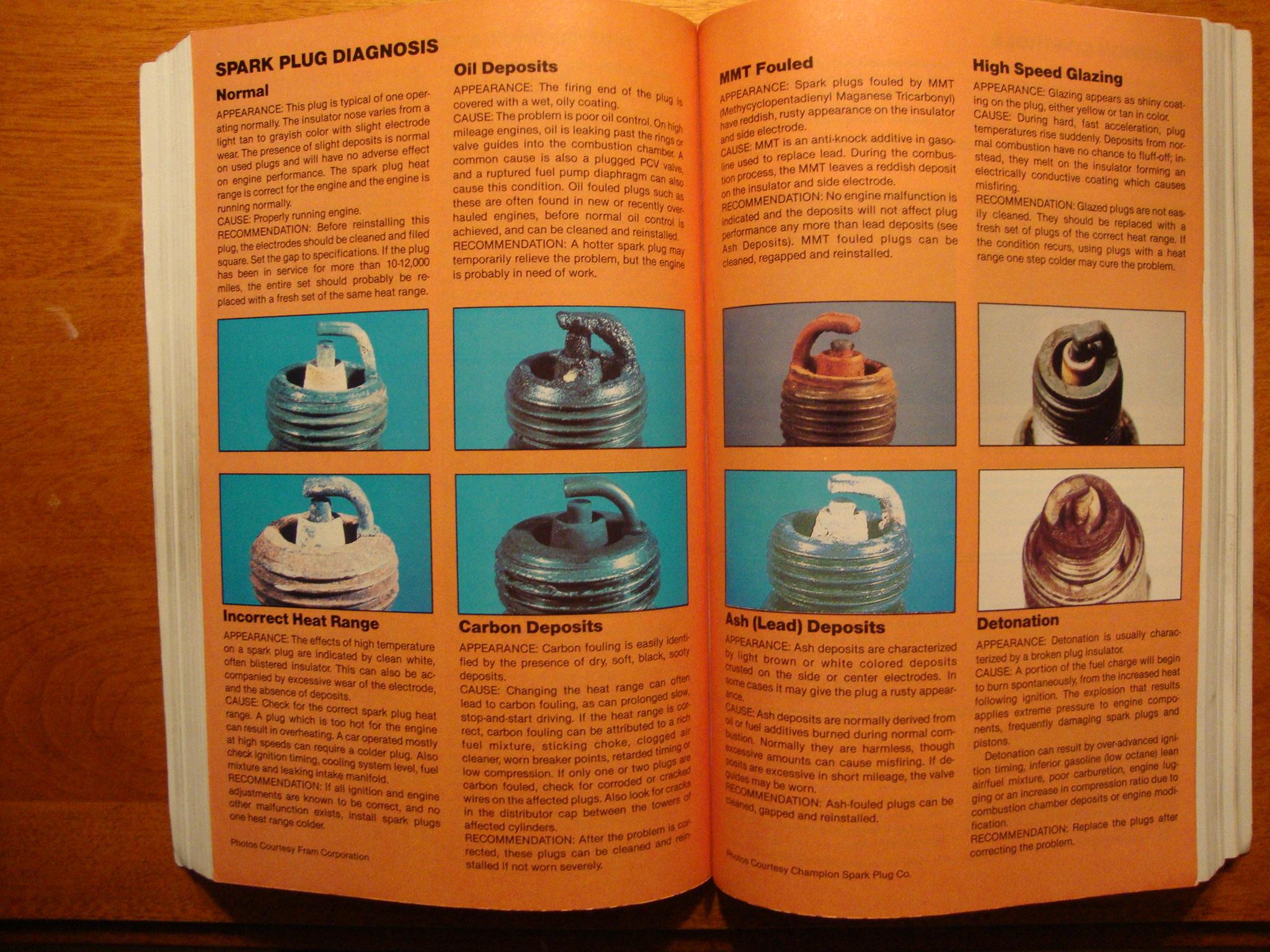

Spark Plug Diag

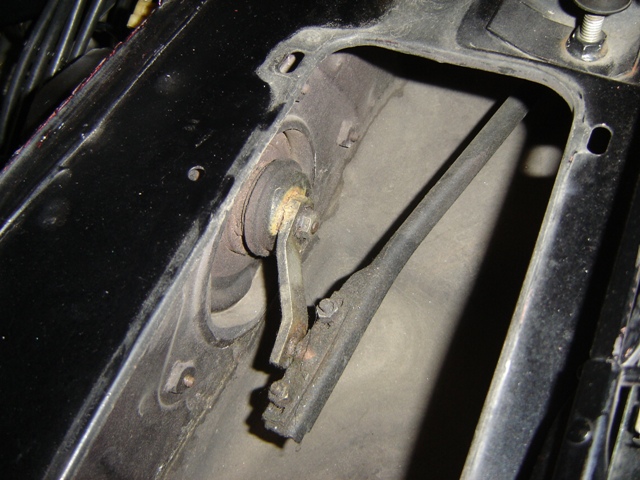

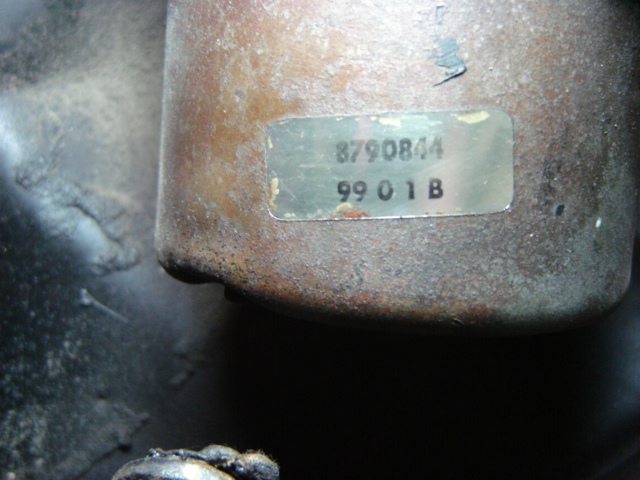

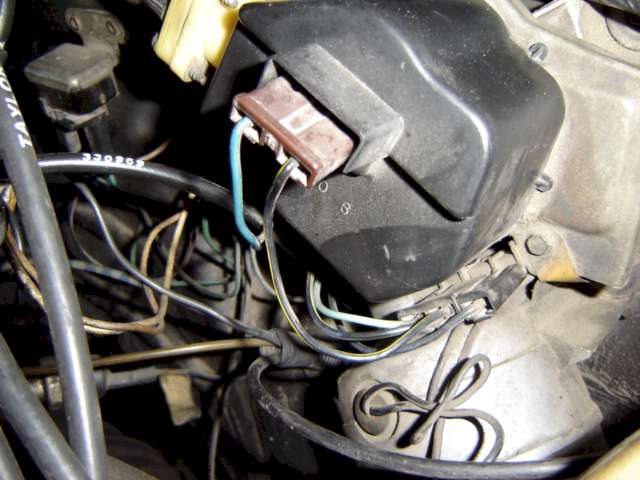

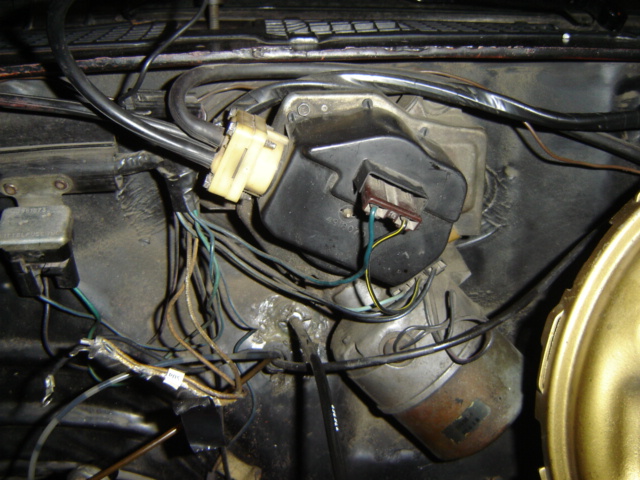

Wiper Motor
